Rubber Expansion Joint ERV-GR 80.16

GREEN BAND expansion joints for chemicals, acids, alkalis and aggressive chemical waste water. For oil-contaminated compressed air up to + 90° C. Temperature range (depending on medium) - 20° C up to + 100° C, temporarily up to + 110° C. Electrically non-conductive.

Camlock Cam Locking hose tail AMK-St 50 Ms (brass)

for the assembling with Spannfix or Spannloc clamps

SPANNFIX pinned Sicherheits Klemmbacken aus aluminium

SX 75 Al

Cargo loading of a tanker with petroleum based products; FHD hose assembly

Picture courtesy of Macoil International, Gibraltar

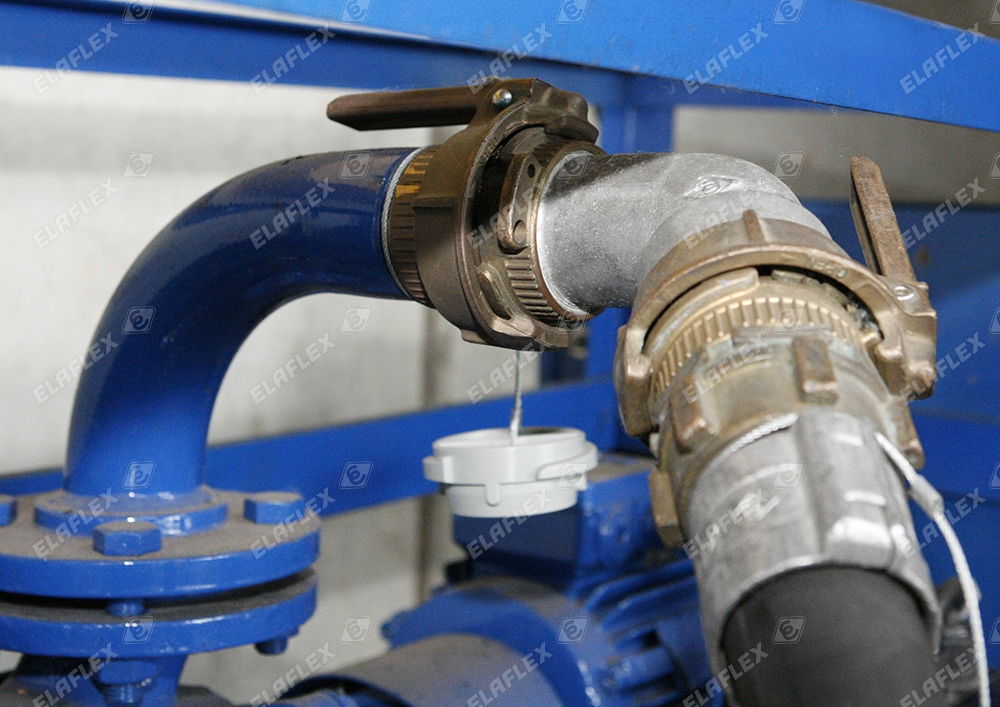

Camlock hose couplings: system comparison

Easyloc from Elaflex with automatically secured levers.

ZVF 50 helicopter refuelling

France

ZVA AdBlue LV with SSB 16 LV SL 16 AdBlue® hose assembly (blue)

AdBlue

AMB 50 SS

'Camlock' stainless steel dust cap to EN 14420 - 7 for male adapters AVK with captive seal

ZV 400

High performance manual operated dispensing nozzle. Special type with stainless steel swivel DG 40 SS

Slimline 21 green

Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360 and EN 13483.

Dantec Production hose

Composite hoses: reeling

GasGuard LPG nozzles

and LPG 16 orange hose assemblies for the filling of commercial and passenger Autogas vehicles as well as mobile and small stationary storage tanks with propane and butane.

ContiTech Production hose

Dispensing hose, extrusion cover

LBS 50 hose for foodstuffs, FDA conform

Alternative fuels: HVO (hydrotreated vegetable oil) and E 85 (gasoline with up to 85% ethanol)

ZVA Slimline 2, ZVA Slimline 2 GR

SG-COAX_Al

Sight Glass, to EN 13617-1, for ZVA Slimline 2 GR with vapour recovery. Installation between petrol station nozzle and hose assembly, or mounting on the dispenser. For the visual control of bubble-free dispensing and fuel colour (e. g. for premium fuels). Suitable for all standardised fuels.

ERV VSR:

ERV with vacuum support ring. Ring of AISI 316 Ti , used when the vacuum resistance of the chosen ERV is not sufficient.

DDC-V 25 Al; DDC-K 25

Dry Disconnect Coupling as probe/sampling unit connection at aircraft refueller

Aircraft Refuelling Skid

HD-C hose assembly, ZVA 32 nozzle, SG1Al sight glass, hose reel made by ELAFLEX Italy

ZVA Slimline 2, guard no. 1, black scuffguard, blue product sleeve, SL 16 hose assembly with blue Colour Sleeve

Type PCS 50 (Polypal Clean DN 50 mm)

MK 50 SSE

TW female coupler. Material: stainless steel with universally resistant PFA coating (red)

ERV-BR 100.16

BR Rubber Expansion Joint, special type for abrasive media such as sludges, slurries, solid / liquid mixtures and emulsions, dustlike or powdery products. Also suitable for all kinds of water (non oil containing) as well as various chemicals. Not suitable for petroleum based products. For extreme strain (e. g. sharp and rough-edged matter) we suggest the use of ERV with inner protection sleeve type SR.

Polypal Clean hose assembly

Pharmaceutical production

ELAFLEX Hamburg, stock bellows

Elaflon Plus FEP hose assemblies:

Bulk filling of powders

ELAFLEX Hamburg

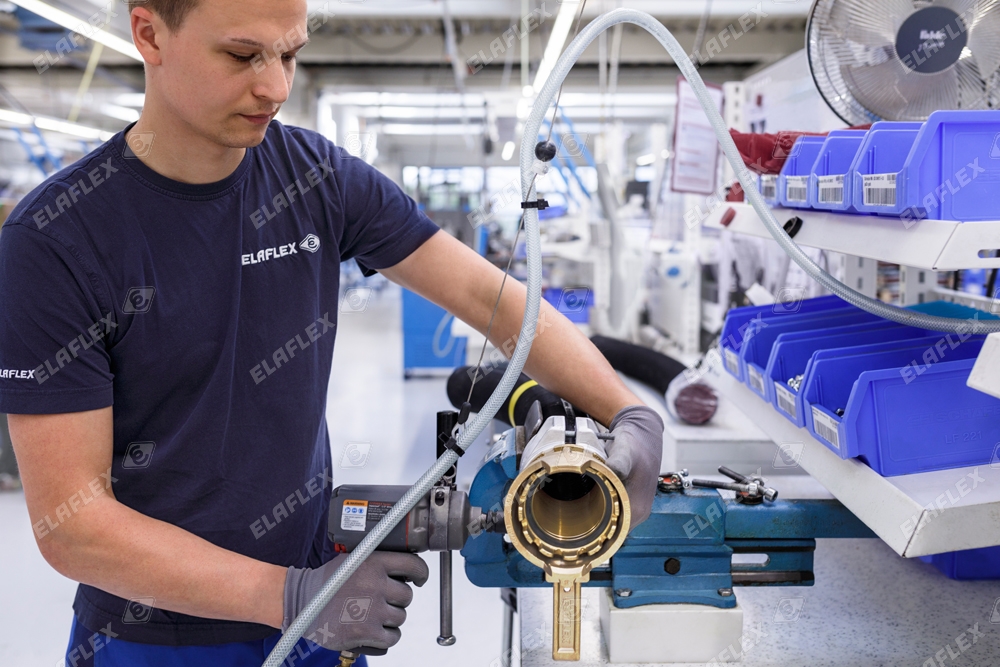

Assembling TW hose coupling with Spannloc clamps

Ship bunkering

Taking probes; VK coupling

ZVA Slimline 2 GR, hand

scuffguard and product sleeve green, Slimline hose assembly with Colour Sleeve green

Connection road tanker to trailer: TW hose assembly, DDC Dry Disconnect Coupling
