Upstream Oil Industry, TW hose assemblies

Upstream Oil Industry, TW hose assemblies

Kuwait

90° Bend Al

90° Bend Al

90° bend of aluminium with pipe thread (EN ISO 228 with flat sealing surface). Available in sizes G 2" and 3". On request with TW couplings.

ELAPAC FD 174 flange seal

ELAPAC FD 174 flange seal

Elaflon Plus FEP hose assemblies:

Elaflon Plus FEP hose assemblies:

Bulk filling of powders

V 16-1" cr

V 16-1" cr

Male ferrule hose coupling EN 14424, reusable. Slimline 16 hose, green.

Oasis FV103 with NC203 P30, Light Duty Fill Valve and Transit Nozzle for CNG

Oasis FV103 with NC203 P30, Light Duty Fill Valve and Transit Nozzle for CNG

ZVG 2 K (Korea)

ZVG 2 K (Korea)

LPG nozzle for vehicle refuelling with liquefied petroleum gas (propane, butane and mixtures) up to 50 l / min. Working pressure 25 bar. Test pressure 40 bar. Burst pressure > 100 bar. Temperature range - 25° up to + 70° C, 'LT'-Type down to - 40° C.

Elaflon Plus FEP hose assemblies, SBC Safety Breakaway Couplings

Elaflon Plus FEP hose assemblies, SBC Safety Breakaway Couplings

FFVF Full Flow Ball Valve, ERV-G ... TW

FFVF Full Flow Ball Valve, ERV-G ... TW

Aircraft refueller

Unloading chemical road tanker

Unloading chemical road tanker

UTS hose assembly

ERV TA:

ERV TA:

ERV with white PTFE lining. Used when the chemical resistance of the chosen ERV type is insufficient. Resistant to all commonly used liquids. Electrically isolating, therefore not suitable for flammable liquids in Ex-Zones. Admissible working temperature of expansion joint has to be observed. For maximum pressure of 6 bar – not suitable for vacuum.

Oasis BV708, 1" ball valves, isolation valves, CNG spheres (tanks)

Oasis BV708, 1" ball valves, isolation valves, CNG spheres (tanks)

ELAPAC FD 50 Oval flange seal

ELAPAC FD 50 Oval flange seal

DGC-V 50 F SS for L.P. Gas, PN 25/40

DGC-V 50 F SS for L.P. Gas, PN 25/40

Dry Disconnect Coupling with flange connection, DN 50, stainless steel, with rubber dust cap

SFC 38 SSE

SFC 38 SSE

Swiveling flange hose coupling with Spannfix clamps. Material: stainless steel with universally resistant PFA coating (red)

ZAF Coax adapter (splitter valve) at petrol station dispenser

ZAF Coax adapter (splitter valve) at petrol station dispenser

RVX 32-11/4 SS

RVX 32-11/4 SS

Hose coupling with male foodstuff thread and Spannfix clamps

ZVA Slimline 2 and ZVA Slimline 2 GR, blue, with Splashguard and Safety Break Couplings

ZVA Slimline 2 and ZVA Slimline 2 GR, blue, with Splashguard and Safety Break Couplings

MannTek SJ swivel

MannTek SJ swivel

Fire-resistant cover for hoses

Fire-resistant cover for hoses

Cargo loading of a tanker with petroleum based products; FHD hose assembly with new longitudinal stripe to avoid torsion

Cargo loading of a tanker with petroleum based products; FHD hose assembly with new longitudinal stripe to avoid torsion

Picture courtesy of Macoil International, Gibraltar

Dantec Production hose

Dantec Production hose

Composite hoses: reeling

Cargo loading / unloading of ship, STW 150, Vapour Line

Cargo loading / unloading of ship, STW 150, Vapour Line

Italy

BK 3 Ms

BK 3 Ms

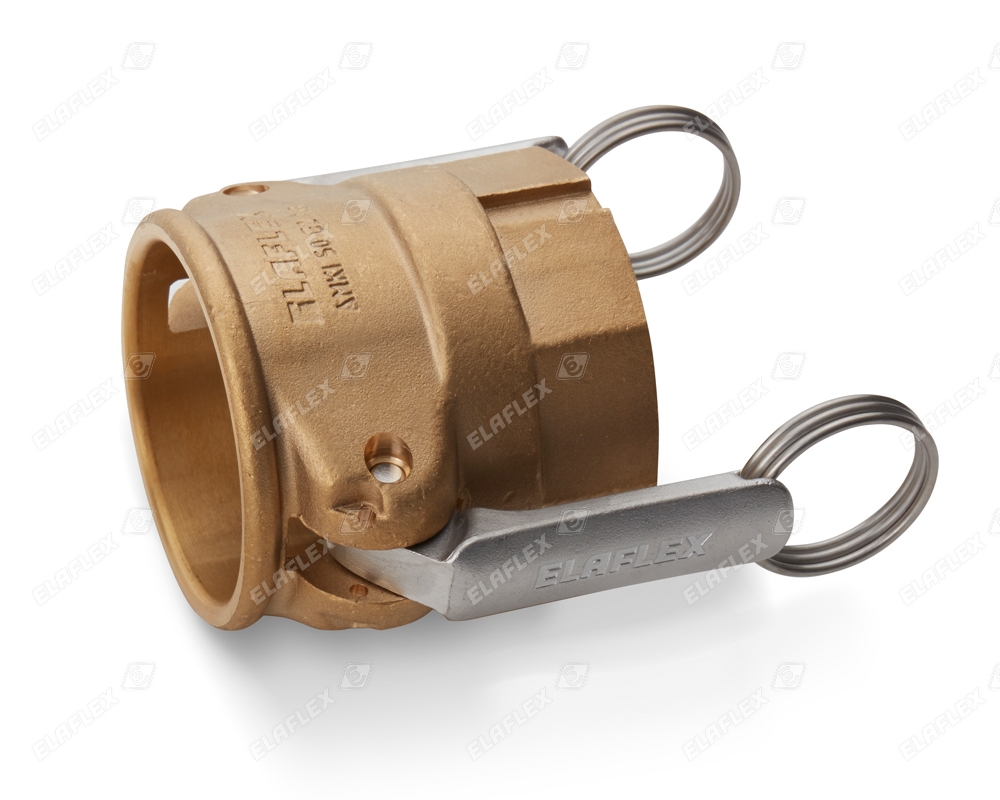

Cap with 3" female BSP thread, brass

Elaflex Hamburg

Elaflex Hamburg

Visual quality checks

Swivels DG of stainless steel

Swivels DG of stainless steel

Swivels serve to avoid hose torsion (increase of life span) and help for easier handling

GasGuard LPG nozzle GG20DN

GasGuard LPG nozzle GG20DN

With long connector nut to access 'hard to reach' fill points. "DN": suited for use by the general public and untrained personell (self service). Patented dual nose piece for added safety. Low lever actuation force. Gas release volume on valve closure : 1,7 cm³.

Camlock couplings:

Camlock couplings:

stainless steel female and male couplings to EN 14420 - 7

Elaflex Hiby Tanktechnik, Production Plettenberg / Germany

Elaflex Hiby Tanktechnik, Production Plettenberg / Germany

Plettenberg factory 2

ZVA Slimline 2 nozzle with hose assembly

ZVA Slimline 2 nozzle with hose assembly
