ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany

Contour check

ContiTech Production hose

handling coil / logistics

DCC Dry Cryogenic Coupling for LNG

Coupling process

ROTEX 80.16 ZS 2

Tied Flanges – Type ZS, Tie rods with outer limitation in rubber bushings

MannTek DGC DryGasCoupling for L.P. Gas

DGC-V 80 F, DDC-K 3" NBR

Universal hose assembly UTL 63 with VC 63-3" SS / SS and MK-A 80 SS

FGN 2 SS

Flange with male thread, stainless steel

Cabinet of road tanker:

MK 80 with VB 80 ADR SS (plug with pressure relief)

FWS composite hoses / hose assemblies

Type FWS PP with female threaded fitting, Type FWS PTFE with stainless steel flange

ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany

Assembling ZVA

Flexible bronze pipe connector BWO

Installed in manhole of a petrol station underground storage tank (UST). Suction pipes towards the dispenser pumps

Production MannTek, Sweden

Quick Tester GR 92

for the simple Yes / No functioning test of vapour recovery

Oasis FV103 Fill Valve, NC 104 Nozzle Coupler, CNG bus refuelling of small truck

Elaflon Plus FEP 25

Universal hose ELAFLON PLUS FEP with seamless FEP lining, resistant to all commonly used chemicals, see resistance chart. Suitable for both suction and delivery (Type FEP D = delivery only). W.P. up to 16 bar, burst pressure > 64 bar. Temperature range from - 30° C up to + 100° C, briefly up to 130° C. Steaming out for cleaning and sterilisation permissible up to 150° C, max. 30 min (open system). Meets EN 12115.

L.P.Gas home delivery:

LPG 38 hose assembly - Aboveground storage Tank

Ball Valve 350 bar

for Hydrogen

Aircraft refuelling Hose Reel

rewind

HD 100 C Neon, HD 10 sensing hose

Aircraft Dispenser with DN 100 hose (spiralised marking) and a sensor hose to control the hydrant system.

ZVF 50 UL 91 / green

Manual aviation fuelling nozzle for overwing service. Flowrate up to 400 ltr. / min. (85 IGM – higher flowrates are possible). Size DN 50. Working pressure PN 10 (140 psi). Temperature range - 40° C up to + 55° C.

HB 19 ST tar spraying hose

DAC-V 65

Aircraft refueller, Dry Aircraft Coupling to ISO 45 for bottom loading

Oasis Engineering Ltd, New Zealand (CNG refuelling products)

Production Picture 7

Oasis FV103 45° Fill Valve with NC 203 P36 Nozzle, for CNG

ContiTech Production ERV

Testing elongation at break

M 21-1" NR cr

Female ferrule hose coupling EN 14424, factory assembled, non-reattacheable. Slimline 21 hose, black.

Underwing aircraft refuelling

with HD 63 C hose assemblies, underwing refuelling

L.P. Gas road tanker: long hose reel, LPG 32 hose assembly

Tank container filling coupling: MK 80-32 SS with VB 80 SS

MK 80-32° coupling with bent lever. For any application it should be checked that the lever can be arrested as shown even if there is tight space. Elaflex offers bent levers for all MK couplers.

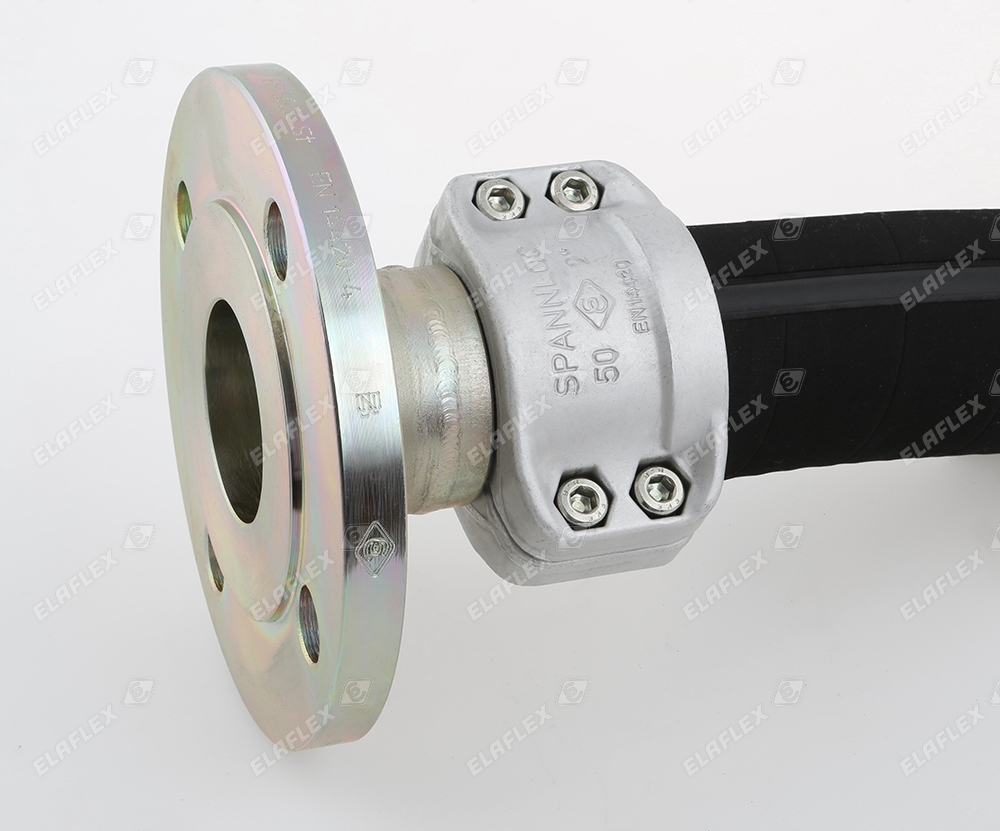

FFC 50.16 St

Fixed flange hose fitting of steel, with Spannloc clamps
