Hose Reels group picture

Movable, pneumatic rewind system, active Vapour Recovery (VR) for gasoline fuels

Boat refuelling, Hose Reel, ZVA Slimline 2 GR

Hose reel with active Vapour Recovery (VR)

SG 80-TW1 Al

Sight glass with rods, with TW flanges to DIN 28460

Fixed Flange and hose tail of stailess steel

SFC 63.16 SS

Aljac Closed Circuit Sampler (CCS), Carter Underwing Nozzle, bonding reel

Airfield refueller

ZVA 25, Slimline hose assembly

Truck refuelling

Production MannTek, Sweden

IBC

with CHS chemical hose assembly

BD 63 Hose Beads

to EI 1522 standard - notably improve handling as they reduce friction against the tarmac. They additionally protect against hose abrasion. 'BD' Hose Beads are highly break resistant, contain no bolts or nuts, can be easily assembled or disassembled and are suitable for reeling.

CHS 50

Lilac Band chemical hose with helix, DN 50

ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany

Sand casting ZVA

Slimline 21 black

Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360 and EN 13483.

Unloading Methanol

with FWS composite hose, DDC Dry Disconnect Coupling

ZVA 25 with Z-Swivel

Boat Refuelling, Hose Reel

ZVG 2 ACME nozzle for L.P. Gas / Autogas

LPG nozzle for vehicle refuelling with liquefied petroleum gas (propane, butane and mixtures) up to 50 l / min. Working pressure 25 bar. Test pressure 40 bar. Burst pressure > 100 bar. Temperature range - 25° up to + 70° C, 'LT'-Type down to - 40° C.

ZVA Slimline 2 without scuffguard: body markings

Manufacturing of turned parts

Optional service for hose assemblies:

BandIt hose marking with test data

Anti-Kinking Spirals 'KSS' and 'KSS-SD'

The main bending stress area for hose assemblies is directly behind the coupling. To reinforce this area we developed the Anti-Kinking Spiral 'KSS': suitable for all ELAFLEX hoses, recommended for dynamically strong stressed universal hoses with thermoplastic linings

Terminal loadingarm

'SBC-C'

Oasis company building

Oasis Engineering Ltd, New Zealand (CNG refuelling products)

Development

Adapter: MK 50-45° SS x VK 50 SS

The lever is bent to enable lever arrest (safe position when coupled)

ZVF 50 AVGAS overwing refuelling

with HD-C hose assembly

Hose assemblies

for petroleum based products, chemicals, foodstuff and pharmaceuticals, LPG

SC 75

Spannloc clamps DN 75 of aluminium

GasGuard LPG nozzle GG30

LPGas nozzle with Bayonet connection according to EN 12806 - 2003 for the filling of commercial and passenger Autogas vehicles as well as mobile and small stationary storage tanks with propane and butane. New : 4-slot design to facilitate connection of the nozzle to the vehicle fill point. New nose piece design to reduce the released gas upon valve closure, incorporating improved gas release method to minimise the risk of splash back.

Oasis FV103 with NC203 P36, Light Duty Fill Valve and Transit Nozzle for CNG

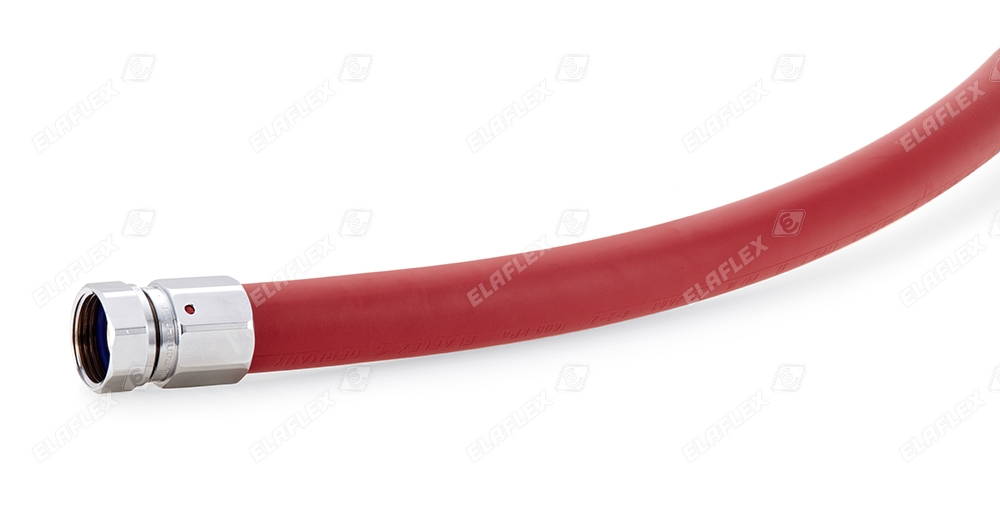

Slimline quality dispensing hoses for the forecourt

black - yellow - red - blue - green - special colours

ZVA Slimline 2 LA nozzle with LeverAssist hold-open aid

LeverAssist reduces the hold-open force by 90%, for comfortable refuelling in countries where latching is not allowed
