Adapters / couplers for vehicles fighting dangerous goods incidents:
Adapter Rail Tanker Dischharge Coupling KWK SS/Vi x VK 50 SS/Vi
UTS hose assembly
on board of a foodstuff road tanker
Elaflon Plus FEP hose assemblies, SBC Safety Breakaway Couplings
LNG Refuelling
Venting the tank with Vent Coupling 'VC-LNG'
HD 50 C, Carter Underwing Nozzle, Aljac Lanyard Reel

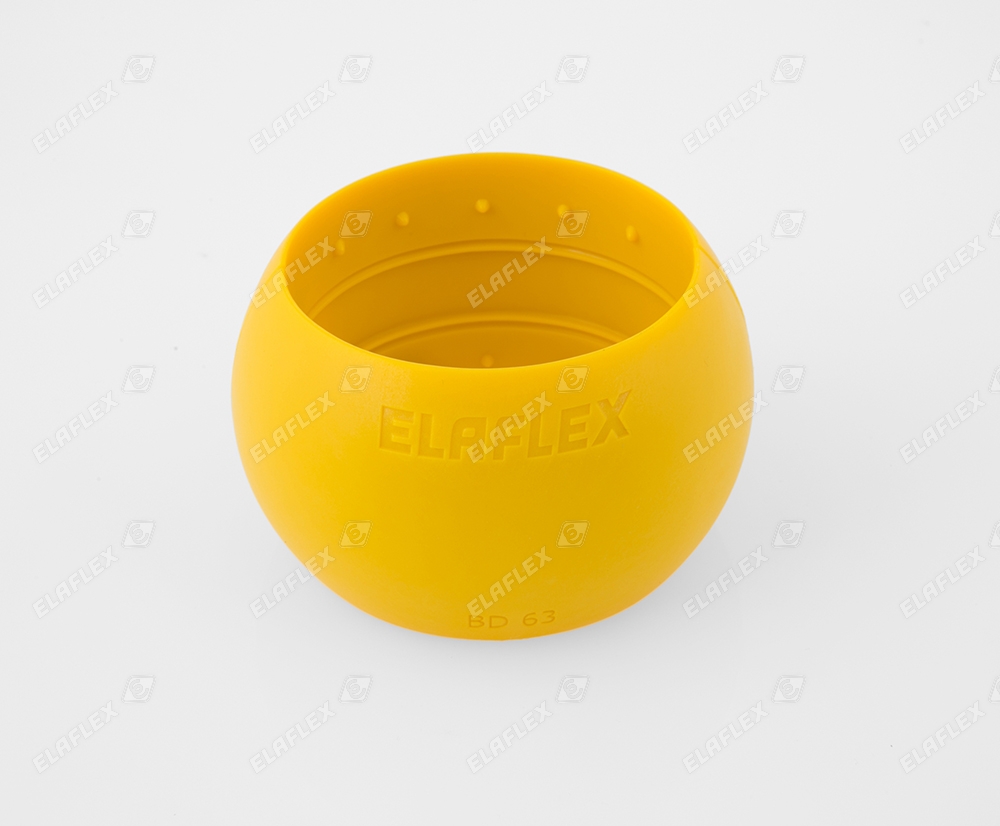

For long and heavy aviation refuelling hoses: Hose Beads 'BD' to EI 1522 standard
They notably improve handling as they reduce friction against the tarmac. They additionally protect against hose abrasion. 'BD' Hose Beads are highly break resistant, contain no bolts or nuts, can be easily assembled or disassembled and are suitable for reeling.
ZVG 2 ACME / EURO / DISH
Nozzles for L.P. Gas (Autogas) refuelling
ERV-OR
"Orange Band" Rubber Expansion Joints, road tanker
ZVA Slimline 2, black, guard 3 - side/front view
DEC – Dry Evotek Couplings:
dry disconnect couplings for the chemical industry.
• Low connecting forces even against pressure
• Ergonomic handle (DN40 and bigger)
• Good transmission ratio in the cam curve
• Wide range of chemical resistance due to selection of high quality materials
• Minimized spillage during decoupling
Adapters / couplers for vehicles fighting dangerous goods incidents:
Adapter for Rail Tanker 51/2" connection KWZ SS/Vi x VK 50 SS/Vi
UTS 200 hose assembly in chemical plant
Italy
EA 866 scuffguard black with ZVG 2 DISH nozzle
The scuffguard for LPG / Autogas nozzles shows the LPG fuel grade marking required by standard, and offers a large advertising space
Unloading chemical road tanker
Tecnopal hose assembly, DDC Dry Disconnect Coupling, Guillemin adapter
ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany
Sand casting
Vehicle refuelling with LPG (L.P. Gas, Autogas)
GasGuard GG20 ACME nozzle
Offset UST filling point, LTW hose assemblies with TW couplings
ERV-R
"Red Band" Rubber Expansion Joints / ship engine room
Nozzles and hose assemblies for the forecourt
ZVA Slimline 2, ZVA Slimline 2 GR, Slimline hose assemblies
SG 1" 1x0 Al
Sight Glass with propeller, to EN 13617-1, DN 25, for installation between petrol station nozzle and hose assembly, or mounting on the dispenser. For the visual control of bubble-free dispensing and fuel colour (e. g. for premium fuels). Suitable for all standardised gasoline and diesel fuels according EN 589 + EN 590, including ethanol or biodiesel content, also Avgas and Jet-A1.
ELAFLEX Hamburg
Assembling Spannfix hose clamps
ERV ZS:
Tied Flanges – Type ZS, Tie rods with outer limitation in rubber bushings
Pump Safety Break
PSB 16
90° Bend Al
90° bend of aluminium with pipe thread (EN ISO 228 with flat sealing surface). Available in sizes G 2" and 3". On request with TW couplings.
Helicopter refuelling, ZVA 32
Storz coupling; water connector ship
Marking of High Temperature Types ZVA Slimline 2 / ZVA Slimline 2 GR
For regions with exceptionally hot summer conditions which may lead to particularly high fuel temperatures we offer High Temperature (HT) nozzle types, available for ZVA Slimline 2 and ZVA Slimline 2 GR.
AdBlue® urea solution, road tanker:
DDC-M 50 Dry Disconnect Coupling, UTL 50 hose assembly on reel
Pharma hose fittings
