Hose assembly for petrol stations

COAX hose SL 21, with inner vapour hose, for vapour recovery Stage II

Polypal Clean hose assembly

Pharmaceutical production

Simultaneous Refuelling/Filling of Diesel and AdBlue®

Picture 1

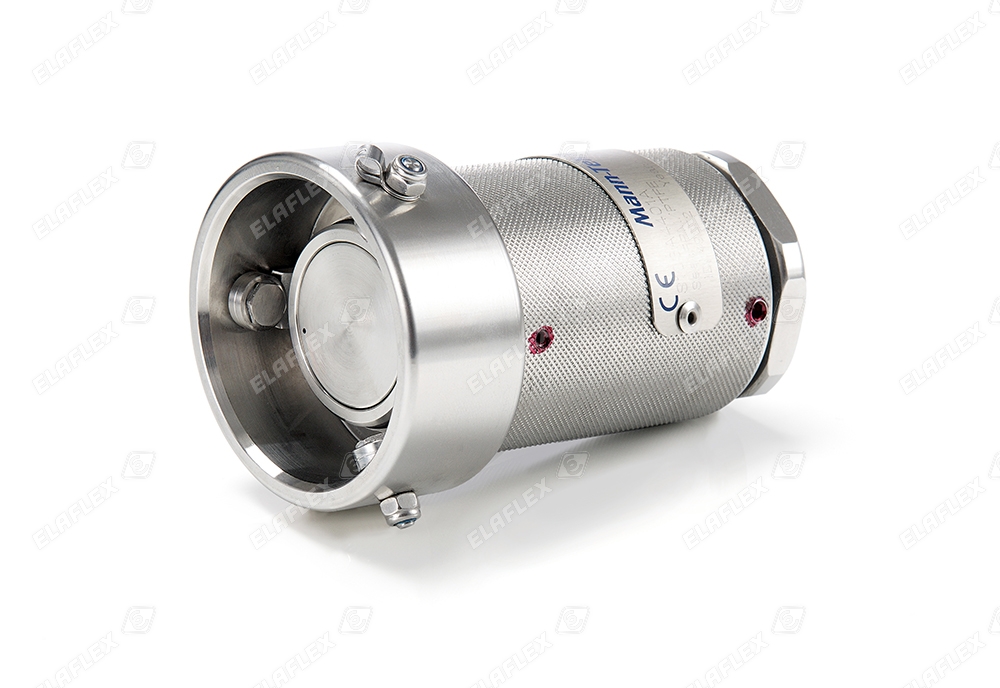

MannTek Dry Disconnect Couplings:

DDC-M 80-3" SS with PolypalClean hose assembly, DDC-V 80-3" SS with pipe end

LNG Refuelling

N-LNG Nozzle, push handles to couple

GasGuard LPG nozzle GG1DN

suited for use by the general public and untrained personell (self service). Patented dual nose piece for added safety. Low lever actuation force. Gas release volume on valve closure: 1.7 cm³.

ELAFLEX Hamburg

Yellow band aircraft refuelling hose, hose coupling with male thread, Spannloc aus Aluminium

HD 50 C, VC 50 SS, SC 50 Al

Quick Tester GR 92

for the simple Yes / No functioning test of vapour recovery

Tank storage, mixer: LTW hose assemblies

Composite hose Danoil 7GG, DDC-M Dry Disconnect Coupling, airport depot

Section view ERV-R Rubber Expansion Joint

Lube oil filling, ZV 19 manual nozzle

Fuel delivery at the petrol station

LTW 75 fuel delivery hose, GPS 50 vapour balance hose

Urea solution filling of a car: ZVA LV for AdBlue®

Road tanker reel with HD 50 hose assembly, ZV 500 nozzle

Oasis FV103 Fill Valve, NC 104 Nozzle Coupler, CNG bus refuelling of small truck

Storz Safety Couplings Type SHK

upon uncoupling, the safety dust plug first falls into holding claws, relasing an eventual pressure within the system. Only then the dust cap can be fully taken off. - increased protection for the operating personnel. Easy to use, no additional pressure release necessary, slim design, does not build up, no freezing up in the dome section.

VB 50 SS

TW dust plug, stainless steel

LNG Refuelling

LNG Safety Break SB-LNG VL und SB-LNG FL

ZVA Slimline 2 nozzles with splashguard, Slimline hose assemblies

Refuelling at a petrol station in the United Arab Emirates

Unloading petroleum products at the service station (road tanker to UST)

MK 80-32° coupling with bent lever. For any application it should be checked that the lever can be arrested as shown even if there is tight space. Elaflex offers bent levers for all MK couplers.

ERV-R ... ZS

"Red Band" Rubber Expansion Joints with limiters

Ship loading with chemicals

UTS 150 hose assembly, ARK-S Safety Break Coupling

M 21-1" cr

Female ferrule hose coupling EN 14424, reuasable. Slimline 21 hose, yellow.

Vehicle refuelling with LPG (L.P. Gas, Autogas)

ZVG 2 DISH nozzle, LPG 16 hose assembly, ARK 19 Safety Break

Colour production: mixer

UTS hose assemblies

Offshore oilrig: TW hose assemblies, DDC Dry Disconnect Couplings

ElaSil® Silicone hose assemblies

Road tanker for heating oil delivery, HD hose assembly, ZH 50 nozzle, MK 80 Ms coupler with VB 80 Al dust plug
