Production plastic parts

Injection Molding

ELAFLEX Hamburg, narrow aisle stock for small parts

Production MannTek, Sweden

VK 80 - 2" IG Ms

TW male coupling brass, with reduced female BSP connection, one piece adapter (special type)

Storz Safety Coupling SHK

upon uncoupling, the safety dust plug first falls into holding claws, relasing an eventual pressure within the system. Only then the dust cap can be fully taken off. - increased protection for the operating personnel. Easy to use, no additional pressure release necessary, slim design, does not build up, no freezing up in the dome section.

Boat refuelling, ZVA 25

Latvia

NR ferrule hose fittings, non reattacheable

Oasis FV103 180° Fill Valve with Bus & Truck Nozzle, for CNG

ELAFLEX Hamburg

Assembling Coax hoses

Petrol station in Singapore

ZVA Slimline 2 nozzle, SSB 16 Safety Break, Slimline hose assembly

AMX 50 PA

Ammoniac hose to EN ISO 5771 for water-free, liquid and gaseous ammonia.

ROTEX 80.16 ZS 2

Tied Flanges – Type ZS, Tie rods with outer limitation in rubber bushings

Polypal Plus 50 universal hose

with seamless, black, conductive UPE lining. For almost all liquid and pasty chemical and petroleum based products and solvents. Meets EN 12115.

IBC metal container; UTS hose assembly

Hose Assemblies with Flange - Elapac seals

On board of an aircraft refueller: TW-hose, Spannloc flanged coupling; flange seal: Elapac.

ROTEX 80.16

Rubber Expansion Joint suitable for permanent use with hot heating water, cooling water and hot air. Approved according to DIN up to 100° C by 10 bar and up to 110° C by 6 bar. Temperature range (depending on medium) - 40° C up to + 130° C, temporarily up to + 150° C. Electrically dissipative

ELAFLEX quality: section view of a ERV bellows

M-St 50 SSE

Female threaded hose tail for assembling with Spannfix or Spannloc. Material: stainless steel with universally resistant PFA coating (red)

LeverAssist hold-open aid for ZVA Slimline 2 nozzles

Detail

MB 80 SSE

TW dust cap of stainless steel, surface in contact with the medium additionally coated with Teflon® PFA. This type is used if stainless steel does not have a sufficient chemical resistance (i.e. for hydrochloric acid and iron-III-chloride) and polypropylene is not possible because of insufficient stability. Available in all standard sizes.

FWS 50 PTFE

Composite hose with PTFE lining

PSB Pump Safety Break for High Hose Dispensers

Picture shows separation of the Slimline hose assembly after a drive-off accident

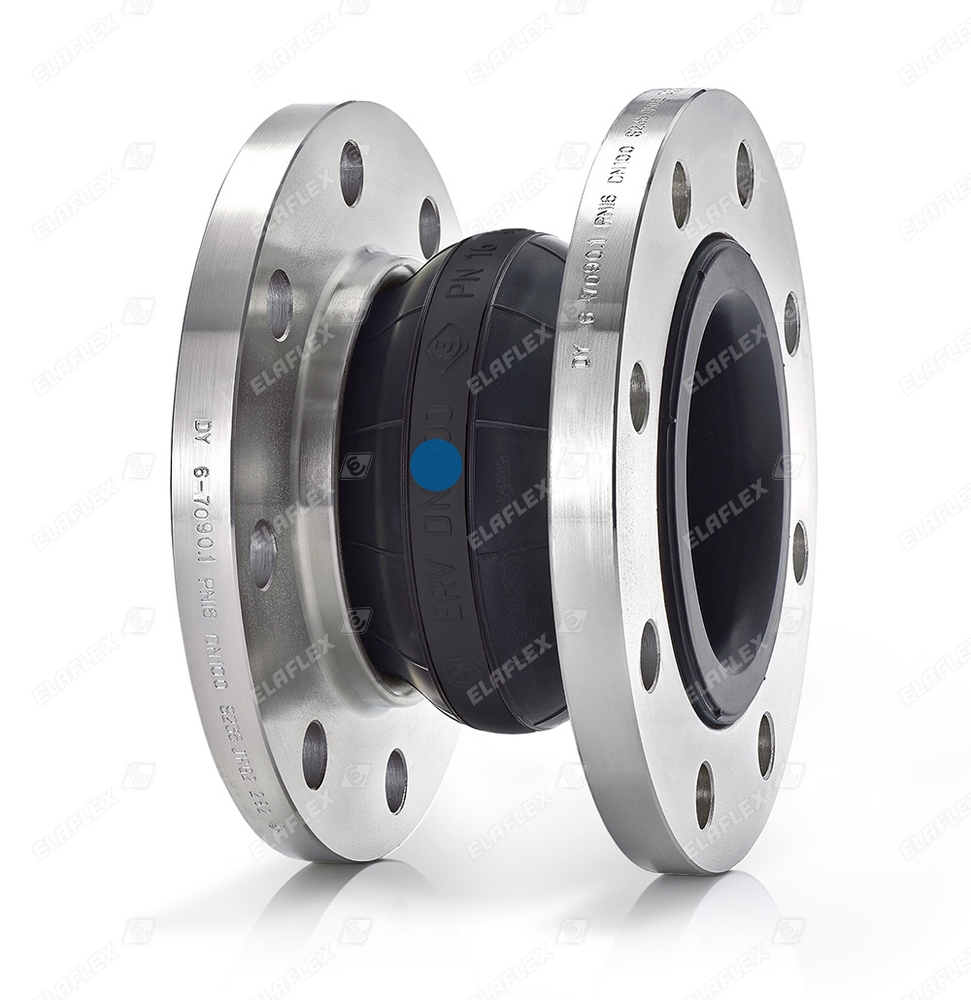

Rubber Expansion Joint ERV-GS HNBR 80.16

YELLOW STEEL HNBR expansion joints for petroleum based products, DIN EN fuels up to 50 % aromatic content, cooling water with oily anticorrosion additives, lubrication and hydraulic oil, seawater. Very good aging, weathering and ozone resistance. Temperature range (depending on medium) - 35° C up to + 100° C, temporarily up to + 120° C. Fire resistant to ISO 15540 up 30 min. at + 800° C. Electrically dissipative.

Refuelling with ZVA Slimline 2

Portugal

IBC unloading

Female hose coupling MC 38-S60 SS (with Spannfix clamps). Direct connection of a hose assembly to the IBC.

Dantec Production hose

Composite hoses: crimping of a flanged hose coupling

ELAFLEX Hamburg, large new narrow aisle stock 2018 for hoses

Adapters / couplers for vehicles fighting dangerous goods incidents:

Adapter Sight Glass SG 2" SS/Vi with MK 50 SS/Vi and VK 50 SS/Vi

Connection road tanker to trailer: TW hose assembly, DDC Dry Disconnect Coupling

Oasis SV104 Sandwich Valve with Air Torque Actuator, for CNG
