Camlock couplings:
stainless steel female and male couplings to EN 14420 - 7
DCC Dry Cryogenic Coupling for LNG
Coupling process
M 21-1" NR cr
Female ferrule hose coupling EN 14424, factory assembled, non-reattacheable. Slimline 21 hose, black.
Production MannTek, Sweden
Dispenser, ZVA Slimline 2 and ZVA Slimline 2 GR nozzles
HD-C NEON hose with new, REFLECTING marking
AMK-St 50 SS, AVK-St 50 SS
'Camlock' stainless steel female and male hose tails to EN 14420 - 7
Elaflon Plus FEP 25
Universal hose ELAFLON PLUS FEP with seamless FEP lining, resistant to all commonly used chemicals, see resistance chart. Suitable for both suction and delivery (Type FEP D = delivery only). W.P. up to 16 bar, burst pressure > 64 bar. Temperature range from - 30° C up to + 100° C, briefly up to 130° C. Steaming out for cleaning and sterilisation permissible up to 150° C, max. 30 min (open system). Meets EN 12115.

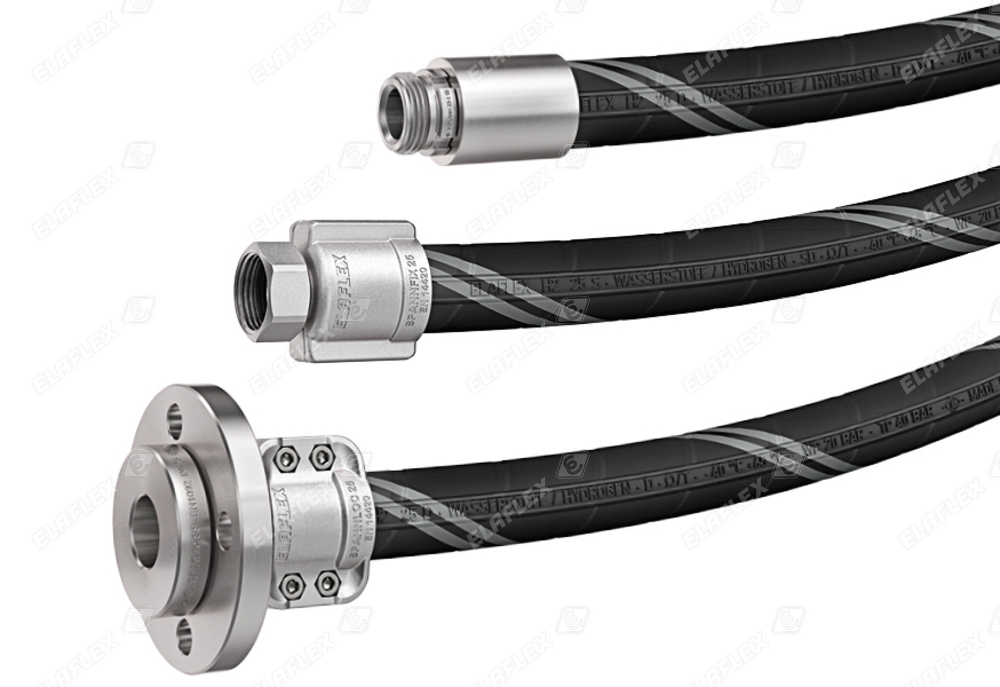

Elaflex hose assemblies
Hose fittings: threaded, flanged, quick couplings, Dry Disconnect Couplings
Marine bunkering and cargo hoses
ship to ship cargo transfer
DGC-V 50 F SS for L.P. Gas, PN 25/40
Dry Disconnect Coupling with flange connection, DN 50, stainless steel, with rubber dust cap
ZVF 50 JET
Manual aviation fuelling nozzle for overwing service. Flowrate up to 400 ltr. / min. (85 IGM – higher flowrates are possible). Size DN 50. Working pressure 10 bar (140 psi). Temperature range -40° C up to +55° C
Slimline hose assembly, section view
ELAFLEX Hamburg
ERV marking after test
Tecnopal chemicol hose assembly
on hose reel
Adapters / couplers for vehicles fighting dangerous goods incidents:
Adapter Sight Glass SG 2" SS/Vi with MK 50 SS/Vi and VK 50 SS/Vi
Rubber Expansion Joint ERV-GR 80.16
GREEN BAND expansion joints for chemicals, acids, alkalis and aggressive chemical waste water. For oil-contaminated compressed air up to + 90° C. Temperature range (depending on medium) - 20° C up to + 100° C, temporarily up to + 110° C. Electrically non-conductive.
Slimline quality dispensing hose for the forecourt
SL 21 red
ZVA Slimline 2 and ZVA Slimline 2 GR, Slimline hose assemblies
Petrol station, Indonesia
Tar (bitumen) spraying hose HB-ST in action
ERV-R 80.16 ZS 2
Red Band Rubber Expansion Joint with "ZS" limiter (tie rods with outer limitation in rubber bushings)
Road tanker for heating oil delivery, DDC Dry Disconnect coupling with ADR conform cap as trailer connection
ZVF 50 SIC (Screw In Connection), strainier inspection
Construction site / on site refuelling:
ZVA 25 (automatic nozzle), road tanker
Safety Swivel Break
SSB 16.0
L.P. Gas rail tanker
loading and unloading with DGC Dry Gas Couplings, LPG hose assemblies. Vehicle side: DGC-V male couplings with flange
HD-C Neon, large reel, VK 100 Ms, MB 100 Al
DDC-M 100, TW hose assembly
Rail tanker bottom loading with Dry Disconnect Coupling
ZVA Slimline 2 GR, special type with bellows, black, guard 3 - side view
Urea solution filling of a car:
ZVA LV for AdBlue®, Slimline 16 for AdBlue® (blue cover)
