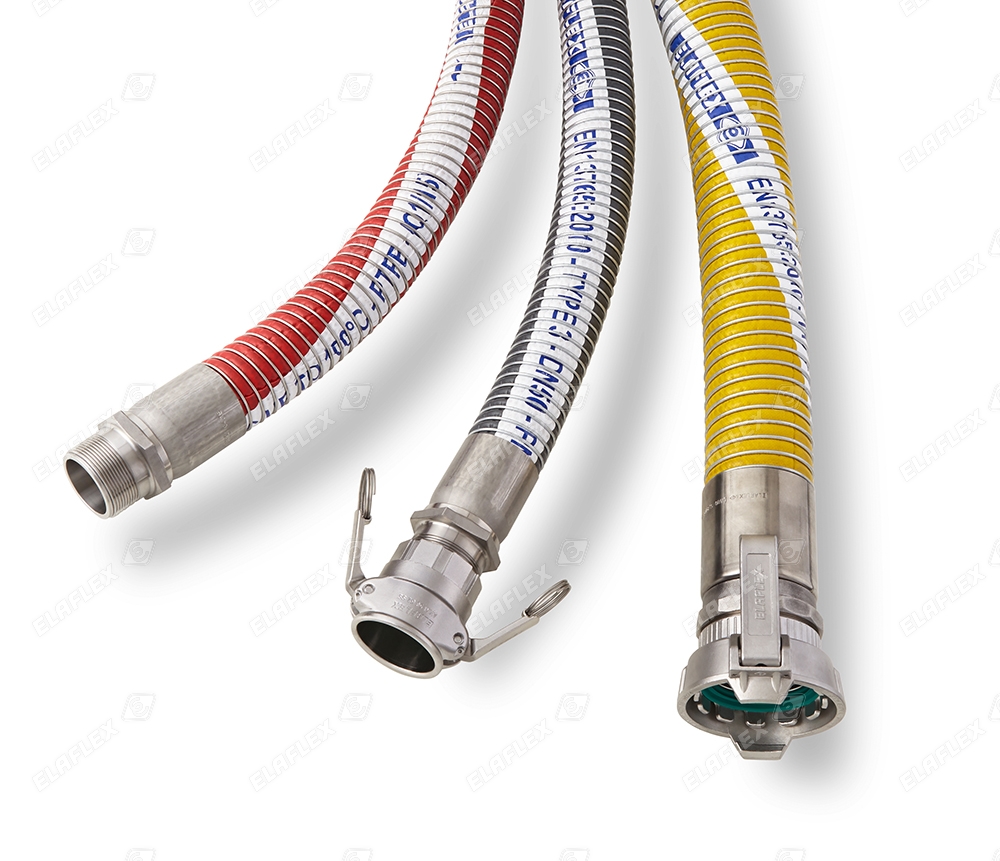

Hose assembly for petroleum based products
LTW 75, VC 75-3", DDC-M 80-3"
Slimline 16 green
Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360.
Marine bunkering and cargo hoses
ship to ship cargo transfer
ZVF 25 for aircraft refuelling
dust cap and ground cable assembly
ZVA Slimline 2 GR, ZVA Slimline 2
Petrol station Germany
Simultaneous Refuelling/Filling of Diesel and AdBlue®
Picture 1
Production MannTek, Sweden
Underwing refuelling A 380
HB 19 ST tar spraying hose
Pressure hose for road construction machines, especially for hot bitumen and heavy heating oil. Temperature range: - 25° C up to + 220° C. Meets EN 13482, Type 2 SB/B (DN 19 and DN 32 analogue).
DAC-M 65
MannTek Dry Aviation Coupling
M 63 2½" SS, TD 76/63 PTFE, Spannloc SC 63 Al
Hose coupling with female thread, Spannloc aus Aluminium

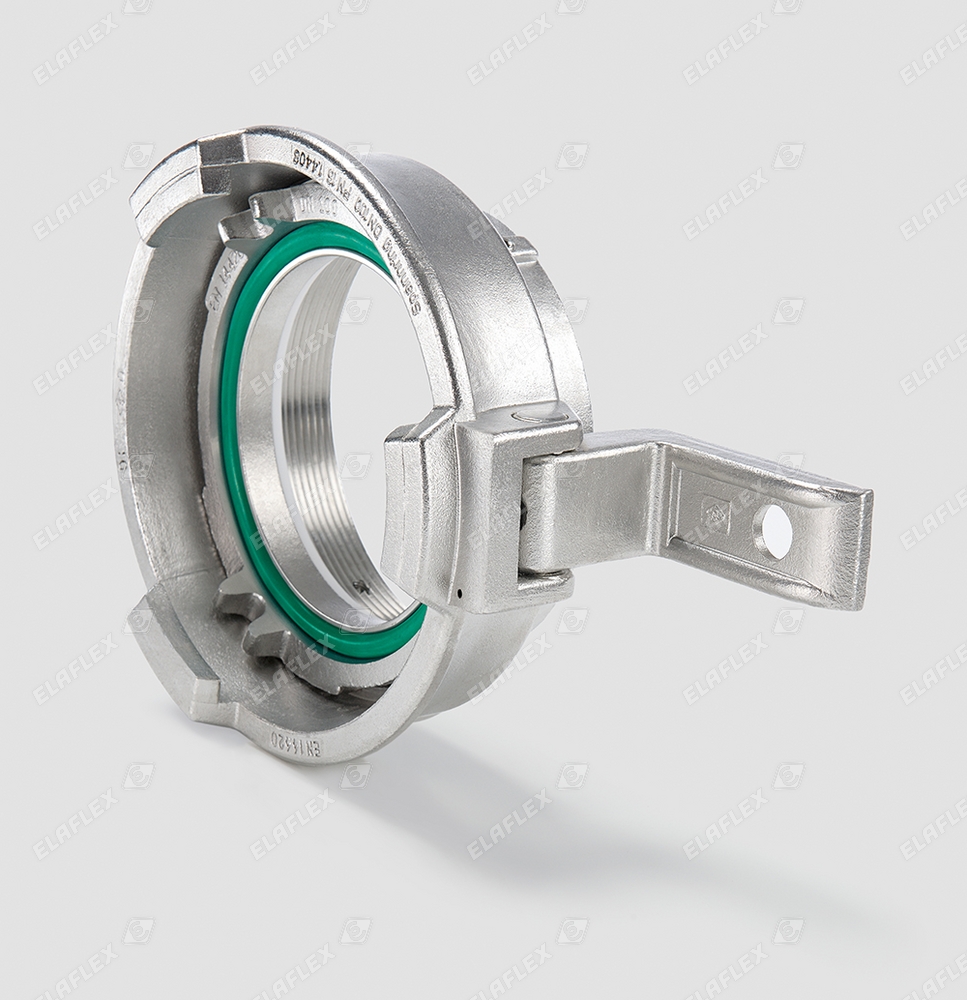

MK-A 80 SS
MK 80 SS with active safeguard lever
Stainless steel couplings with PFA coating, type "...SSE"
Surface in contact with the medium additionally coated with Teflon® PFA. This type is used if stainless steel does not have a sufficient chemical resistance (i.e. for hydrochloric acid and iron-III-chloride) and polypropylene is not possible because of insufficient stability. Available in all standard sizes.

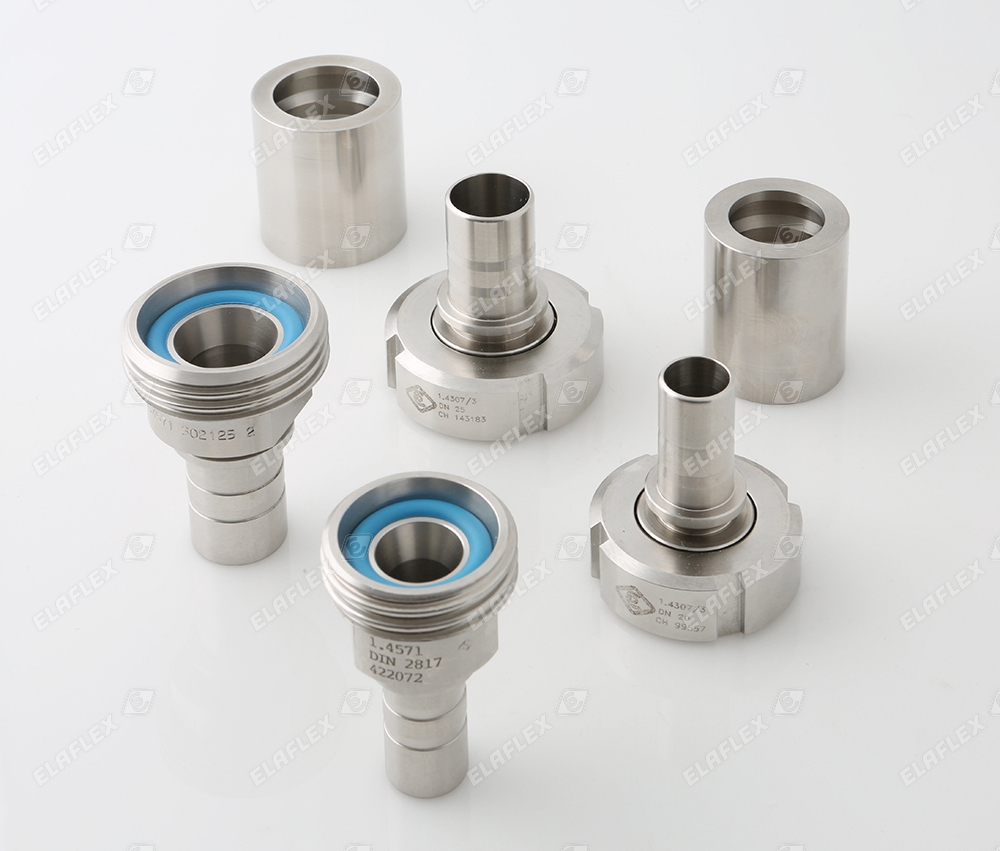

Fixed Flange and hose tail of stailess steel
FF 63.16 SS
Slimline 21 green
Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360 and EN 13483.
Ship bunkering with LNG
Coupling of DCC male and female part DN 50; left hand side CBC 50 Cryogenic Breakaway Coupling
Elaflon Plus FEP hose assembly with KSS anti kinking sleeve
flange hose fitting with special coating
ELAFLEX refuelling equipment:
Quality is in the detail.
CNG Safety Break with Extention 'EL' (Extended Length) SB-CNG FLVL-EL-J
SB-CNG FLVL-EL-J
GasGuard nozzle GG 1 DN, hose assembly, nozzle boot NB-GG
TSVX 50
Hose connectors with double shank of hot stamped brass, with Spannfix safety clamps of hot stamped aluminium.
ELAFLEX Hamburg
Assembling Coax hoses
Construction of ELAFLEX composite hoses type FWS
Sectioned view of a composite hose, denomination of the components (English)

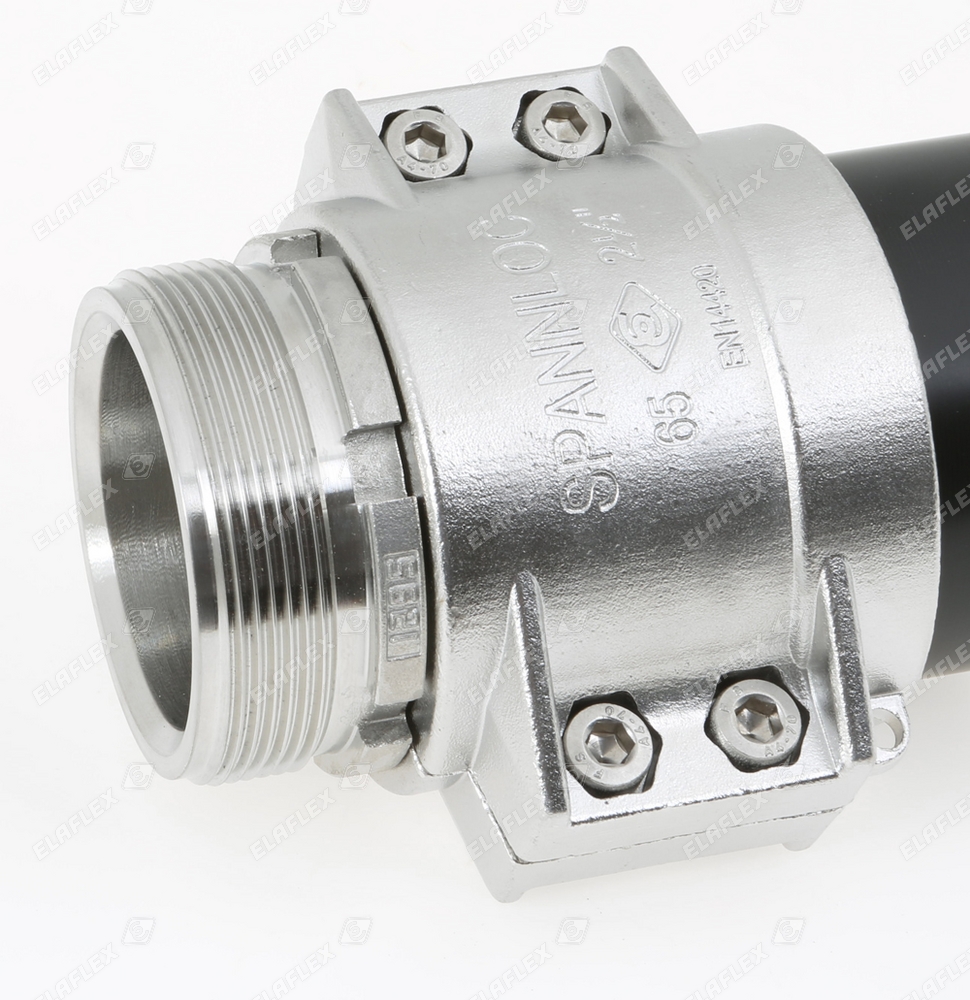

VC 65-21/2" SS / SS
Spannloc threaded hose coupling with BSP male thread / Spannloc of stainless steel
HD 100 C, HD 10 sensing hose
Aircraft Dispenser with DN 100 hose (spiralised marking) and a sensor hose to control the hydrant system.
AMX 50 PA
Ammoniac hose to EN ISO 5771 for water-free, liquid and gaseous ammonia.
Marine bunkering and cargo hoses
ship to shore bunkering
Trailer Inline Safety Breaks
IB108
RS 2 x 2 Ms
Reducer Female/Male
ZVA Slimline 2 GR
with red scuffguard; CSB 21 Coax Safety Break with BS 21 Break Sleeve; Slimline COAX hose assembly
