Swivels DG 25 SS, DG 38 SS, DG 50 SS with hose assembly

Swivels DG 25 SS, DG 38 SS, DG 50 SS with hose assembly

Swivels serve to avoid hose torsion (increase of life span) and help for easier handling

Urea solution filling for light vehicles - parallel to Diesel refuelling

Urea solution filling for light vehicles - parallel to Diesel refuelling

ZVA AdBlue LV / ZVA Slimline 2

Oasis DMI Dispenser Manifold for CNG

Oasis DMI Dispenser Manifold for CNG

ROTEX 80.16 ZS 2

ROTEX 80.16 ZS 2

Tied Flanges – Type ZS, Tie rods with outer limitation in rubber bushings

GasGuard LPG nozzle GG1EH

GasGuard LPG nozzle GG1EH

used for industrial refueling / attended refueling. With hybrid nose piece − low lever force. Release volume on valve closure: 1,7 cm³.

ZVA Slimline 2 GR with splashguard, hand

ZVA Slimline 2 GR with splashguard, hand

scuffguard and Splashguard green, Slimline hose assembly with Colour Sleeve green

ContiTech Production hose

ContiTech Production hose

coiling

SG-COAX_Al

SG-COAX_Al

Sight Glass, to EN 13617-1, for ZVA Slimline 2 GR with vapour recovery. Installation between petrol station nozzle and hose assembly, or mounting on the dispenser. For the visual control of bubble-free dispensing and fuel colour (e. g. for premium fuels). Suitable for all standardised fuels.

ZVA_AdBlue_LV_2-Stufen-Anschlag_Step2_mod

ZVA_AdBlue_LV_2-Stufen-Anschlag_Step2_mod

Use - 2/2

ZVA Slimline 2 nozzles special version, Slimline dispensing hoses blue / red

ZVA Slimline 2 nozzles special version, Slimline dispensing hoses blue / red

Thailand

Production MannTek, Sweden

Production MannTek, Sweden

Flame protection cover FSH for ERV rubber expansion joints

Flame protection cover FSH for ERV rubber expansion joints

Unloading petroleum products at the service station (road tanker to UST)

Unloading petroleum products at the service station (road tanker to UST)

LTW hose assembly, MK 80-32° Ms couplers with bent lever. The lever shall always be fully closed for safety reasons. For applications with limited room.

IBC

IBC

with CHS chemical hose assembly

ZV 500 DDC, ZVA 32 DDC, hose assembly with DDC-M coupling

ZV 500 DDC, ZVA 32 DDC, hose assembly with DDC-M coupling

Refuelling of construction site machines from the road tanker: only one hose reel, choose between two nozzles (ZV 500 for bulk, ZVA 32 automatic nozzle up to 200 l/min)

Rail tanker unloading of petroleum based products

Rail tanker unloading of petroleum based products

LTW hose assemblies; Poland

V 16-1" cr

V 16-1" cr

Male ferrule hose coupling EN 14424, reusable. Slimline 16 hose, black.

Elaflex hose assemblies and Rubber Expansion Joints

Elaflex hose assemblies and Rubber Expansion Joints

Elaflex AB, Sweden

Elaflex AB, Sweden

Elaflon Plus FEP 25

Elaflon Plus FEP 25

Universal hose ELAFLON PLUS FEP with seamless FEP lining, resistant to all commonly used chemicals, see resistance chart. Suitable for both suction and delivery (Type FEP D = delivery only). W.P. up to 16 bar, burst pressure > 64 bar. Temperature range from - 30° C up to + 100° C, briefly up to 130° C. Steaming out for cleaning and sterilisation permissible up to 150° C, max. 30 min (open system). Meets EN 12115.

System comparison Camlock Cam Locking Couplings

System comparison Camlock Cam Locking Couplings

Industry standard vs. ELAFLEX EASYLOC

ERV-G

ERV-G

with vacuum support spiral

HD-C, aircraft refueller

HD-C, aircraft refueller

HD 100 C, HD 10 sensing hose

HD 100 C, HD 10 sensing hose

Aircraft Dispenser with DN 100 hose (spiralised marking) and a sensor hose to control the hydrant system.

Connection road tanker to trailer: LTW hose assembly, DDC Dry Disconnect Coupling

Connection road tanker to trailer: LTW hose assembly, DDC Dry Disconnect Coupling

Terminal / gantry: 'Polypal Oil' hose assemblies for bottom loading of road tankers

Terminal / gantry: 'Polypal Oil' hose assemblies for bottom loading of road tankers

Lining UPE - resistant to all petrochemical media, also with high content of aromatics or other aggressive additives; cover CR - oil resistant

ELAFLEX Hamburg

ELAFLEX Hamburg

Assembling Coax hoses

ELAFLEX Hamburg

ELAFLEX Hamburg

Nozzle stock, ZVA Slimline 2 GR

Elapharm EPH-OHM with welding end

Elapharm EPH-OHM with welding end

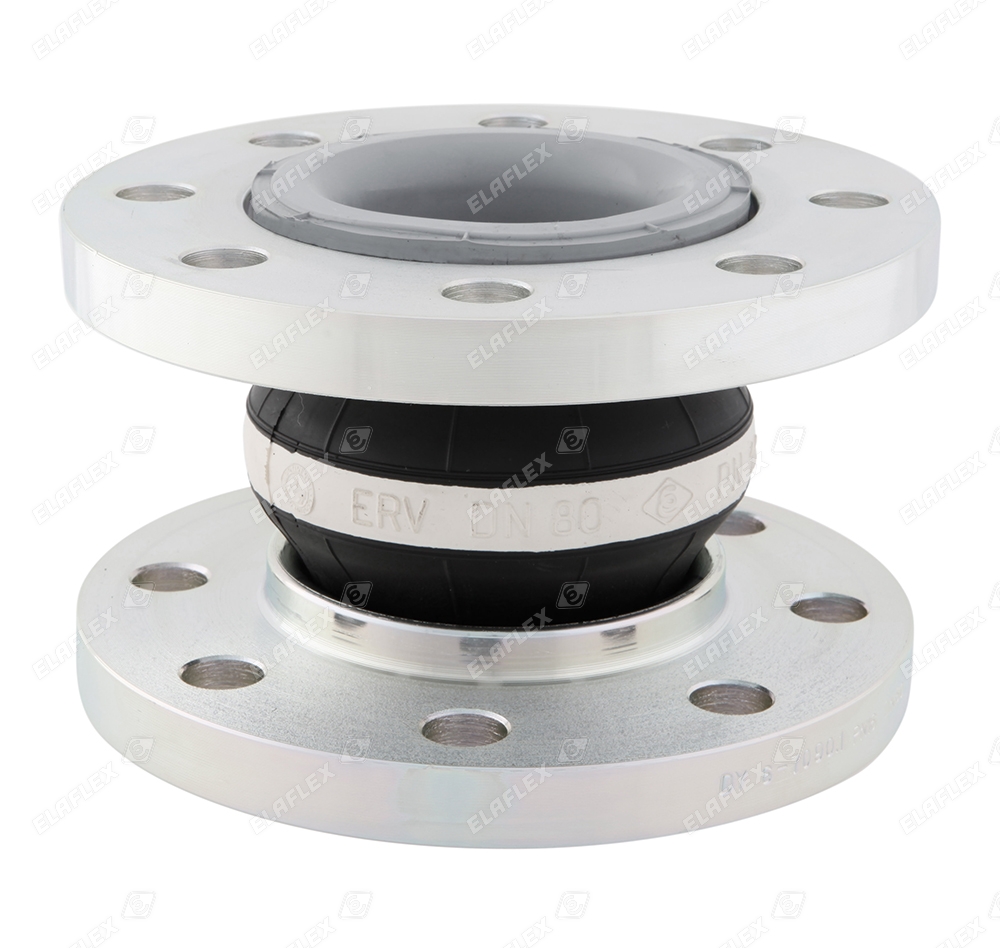

ERV TA:

ERV TA:

ERV with white PTFE lining. Used when the chemical resistance of the chosen ERV type is insufficient. Resistant to all commonly used liquids. Electrically isolating, therefore not suitable for flammable liquids in Ex-Zones. Admissible working temperature of expansion joint has to be observed. For maximum pressure of 6 bar – not suitable for vacuum.
