ZVA Slimline 2 GR, black, guard 3 - top view

IBC unloading

Coupling of chemical hose assembly with AMKC 50 SS (Camlock female with Spannloc attachment) to AMKI male coupling. Use of IBC-reducer RS 60 x 2 SS, directly attached to IBC.

ERV-G ... TW

Aircraft refueller

ERV Fire Resistance test

ROTEX 80.16 ZS 2

Tied Flanges – Type ZS, Tie rods with outer limitation in rubber bushings

Ball Valve 350 bar

for Hydrogen

Lube oil plant: manifold with DDC-V Dry Disconnect Couplings

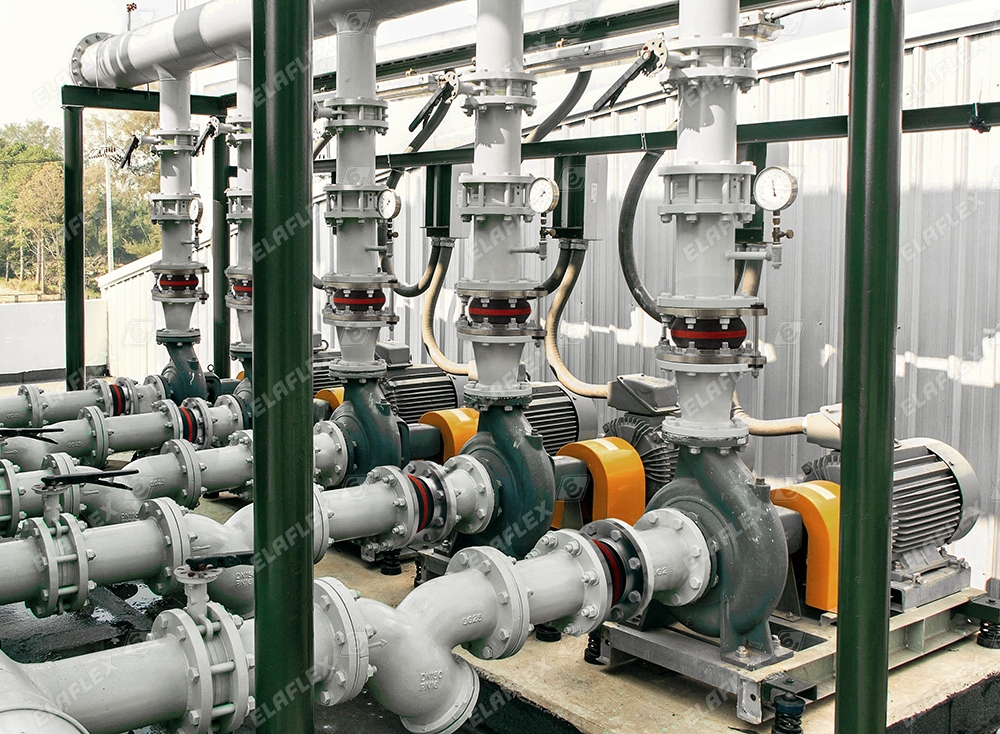

Rubber Expansion Joint ROTEX 80.16

ROTEX expansion joints suitable for permanent use with hot heating water, cooling water and hot air. Approved according to DIN up to 100° C by 10 bar and up to 110° C by 6 bar. Temperature range (depending on medium) - 40° C up to + 130° C, temporarily up to + 150° C. Electrically dissipative.

Oasis FV103 90° Fill Valve with Bus & Truck Nozzle, for CNG

H2 Hydrogen

ERV-H2+ DN 80

ZVG 2 DISH

Nozzle for L.P. Gas / Autogas, with 'Italian' Claw Coupling. Pictured: coupling open / closed

Construction site / on site refuelling:

ZVA 500 manual bulk nozzle, HD hose assembly, road tanker

MannTek FFVB Ball Valve at tanker

DDC-M 100, TW hose assembly

Rail tanker bottom loading with Dry Disconnect Coupling

Slimline 21 black

Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360 and EN 13483.

Slimline 21 hose assembly with non reattacheable female coupling M 21-1" NR

M 21-1" NR cr

Female ferrule hose coupling EN 14424, factory assembled, non-reattacheable. Slimline 21 hose, black.

Underwing aircraft refuelling

with HD 63 C hose assemblies, underwing refuelling

ZVG 2 ACME nozzle for L.P. Gas / Autogas

LPG nozzle for vehicle refuelling with liquefied petroleum gas (propane, butane and mixtures) up to 50 l / min. Working pressure 25 bar. Test pressure 40 bar. Burst pressure > 100 bar. Temperature range - 25° up to + 70° C, 'LT'-Type down to - 40° C.

Functioning principle of MannTek DDC Dry Disconnect Couplings

closed - open

Elapharm EPH-OHM with welding end

VHD Neon aircraft refuelling hoses

Aircraft dispenser

ERV-GR 250.10 SS TA

Green Band Rubber Expansion Joint with PTFE lining

Urea solution filling of a car:

ZVA LV for AdBlue^®, Slimline 16 for AdBlue^® (blue cover)

SVC 50-2"

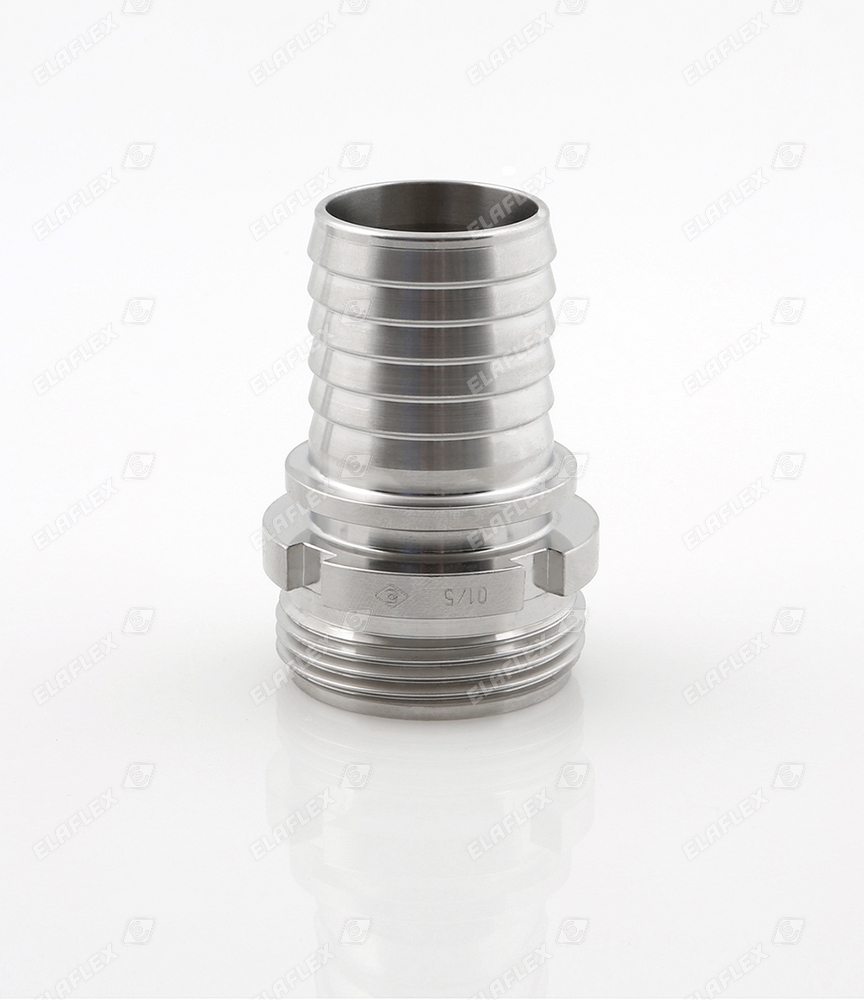

Male hose coupling of steel with Spannloc clamps

Swivel EA 075 A f. ZVA HV for AdBlue®

new design

ERV VSD:

ERV with vacuum support spiral. Spiral of AISI 316 Ti, used when the vacuum resistance of the chosen ERV is not sufficient.

IBC loading and unloading

MannTek DDC-M 50, FWS 50 PTFE

Hose assembly TW 63 with SFX 63

TW hose with helix, 'TW' flange with hose tail and Spannfix clamps of aluminium

ZVA Slimline 2 with SG 1" Al Sight Glass
