Media Library / Images

DDC-V 50 SS

MannTek Dry Disconnect Coupling, DN 50, stainless steel, with BSP thread connection

Stainless steel Hose Reel spring rewind black, FEP 38, DDC-M 50 SS

DDC-M 80-3" Ms

MannTek Dry Disconnect Coupling, DN 80, gunmetal

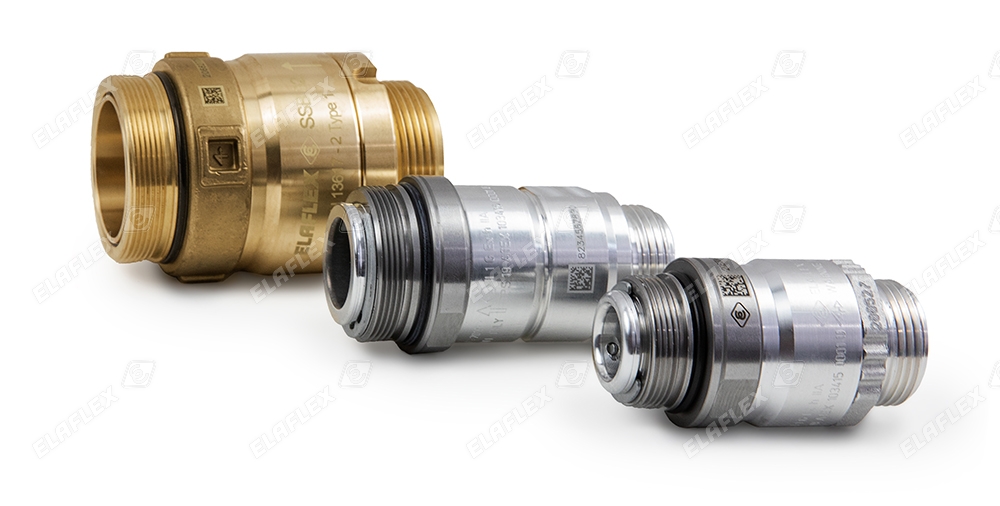

SSB 32, SSB 25, SSB16

Safety Swivel Breaks (SSB)

Cabinet of road tanker:

hose tubes, MK 100, MK 80, hose assemblies

DAC-V 65, DAC-M 65

Aircraft refueller , Dry Aircraft Coupling to ISO 45 for bottom loading - with and without sight glass

Hose assemblies

Universal hose UTS 50 with DDC-M 50-2"; Tanker hose for petroleum based products LTW 75 with DDC-M 80-3"

VR Hose Reel Spring Rewind, ZVA Slimline 2 GR blue

for active Vapour Recovery (VR)

Compact Line HD 50, Hose Reel Spring Rewind

FEP 5O, MannTek DDC-M 5O SS

M 16-1" NR cr

Female ferrule hose coupling EN 14424, factory assembled, non-reattacheable. Slimline 16 hose, blue.

Rubber Expansion Joint ERV-BR 80.16

BR Expansion Joints, special type for abrasive media such as sludges, slurries, solid / liquid mixtures and emulsions, dustlike or powdery products (e. g. carbon-blacks). Also suitable for all kinds of water (non oil containing) as well as various chemicals. Not suitable for petroleum based products. For extreme strain (e.g. sharp and rough-edged matter) we suggest the use of ERV with inner protection sleeve type SR

Rubber Expansion Joint ERV-G 80.16

YELLOW BAND expansion joints suitable for petroleum based products with aromatic content up to 50%, fuels (ethanol content up to 85 %), aviation fuels, town gas and natural gas except liquefied petroleum gas. Temperature range (depending on medium) - 20° C up to + 90° C, temporarily up to + 100° C. Electrically dissipative.

Bunker boat: HD hose assembly on reel, ZV 500 nozzle

ZVA Slimline 2 GR, Bügel 1, Product Sleeve blue, Coax hose assembly with Colour Sleeve blue

ZVG 2 K (Korea)

with EA 866 scuffguard / nozzle talker

GasGuard LPG nozzle GG1E

eoconomic type for industrial refueling / attended refueling. Release volume on valve closure: 1,9 cm³.

Elaflex Tank + Pipe Fittings

Cargo loading of a tanker with petroleum based products; FHD hose assembly

Picture courtesy of Macoil International, Gibraltar

IBC unloading

Coupling of Chemopal chemical hose assembly with AMKC 50 SS (Camlock female with Spannloc attachment) to AMKI male coupling. Use of IBC-adapter RS 60 x 2 SS.

ZVG 2 ACME nozzle for L.P. Gas / Autogas

visible: Magnet within the guard for the dispenser Reed Switch

ZVA Slimline 2 GRVP - spout with vapour suction inlet

Rail tanker unloading of petroleum based products

LTW hose assemblies, TW couplings

DGC-V 50 F SS for L.P. Gas, PN 25/40

Dry Disconnect Coupling with flange connection, DN 50, stainless steel, with rubber dust cap

ELAFLEX Hamburg

Mini Installation instructions, on request

ZVA Slimline 2, SSB 16, Slimline 16 hose assemblies

Maroc, motorcycle refuelling

Coloured hose assemblies for the forecourt

Slimline 21, M 21-1" NR

MX 63-21/2" Ms

Female coupling for hoses, brass, with Spannfix clamp

Simultaneous Refuelling/Filling of Diesel and AdBlue®

Picture 1

Dantec Production hose

Composite hoses

ZVA LV for AdBlue® with SSB 16 LV SL 16 for AdBlue® hose assembly (blue)
