L.P.Gas road tanker
ELAFLEX Hamburg
Hose assemblies pressure testing (hydrostatic test)
MK 80-90 SS; MK coupling stainless steel with bent lever 90°
TW coupling with bent lever: For any application it should be checked that the lever can be arrested as shown even if there is tight space. Elaflex offers bent levers for all MK couplers.

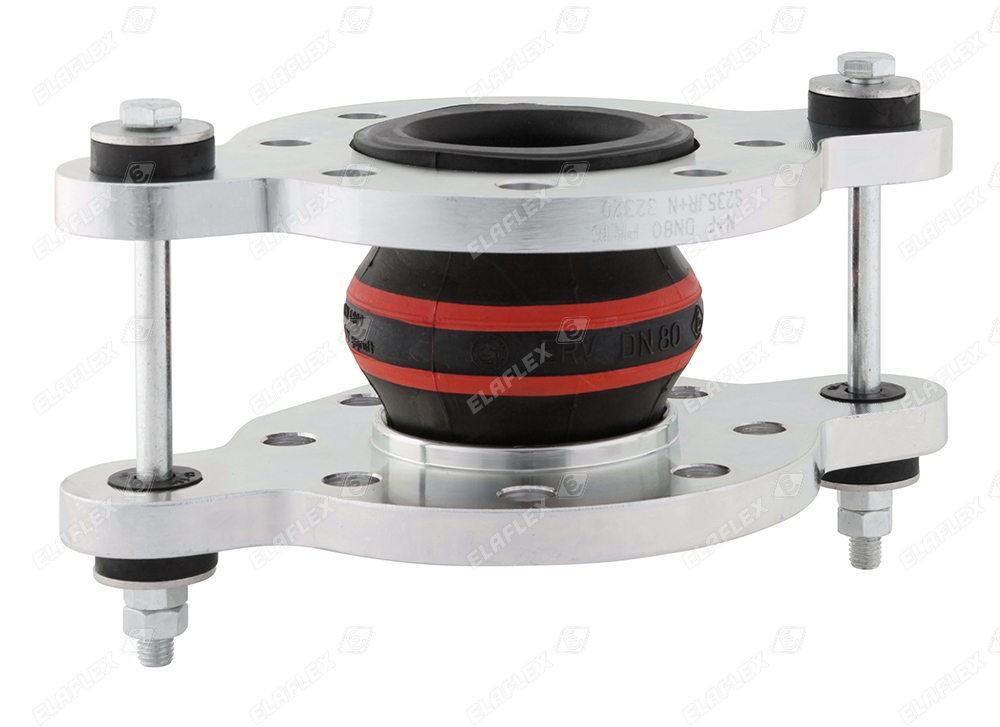

ERV-G 80.TW
ERV-G Rubber Expansion Joint with TW flanges DIN 28460 for installation to tankers
Equipment truck for dangerous goods accidents, Elaflon PTFE universal hose assembly, DDC Dry Disconnect Coupling
Urea solution for trucks: ZVA AdBlue HV nozzle
HB hot bitumen hose - loading road tanker
Swivel EA 075 and EA 075 ERS Easy Rotating Swivel

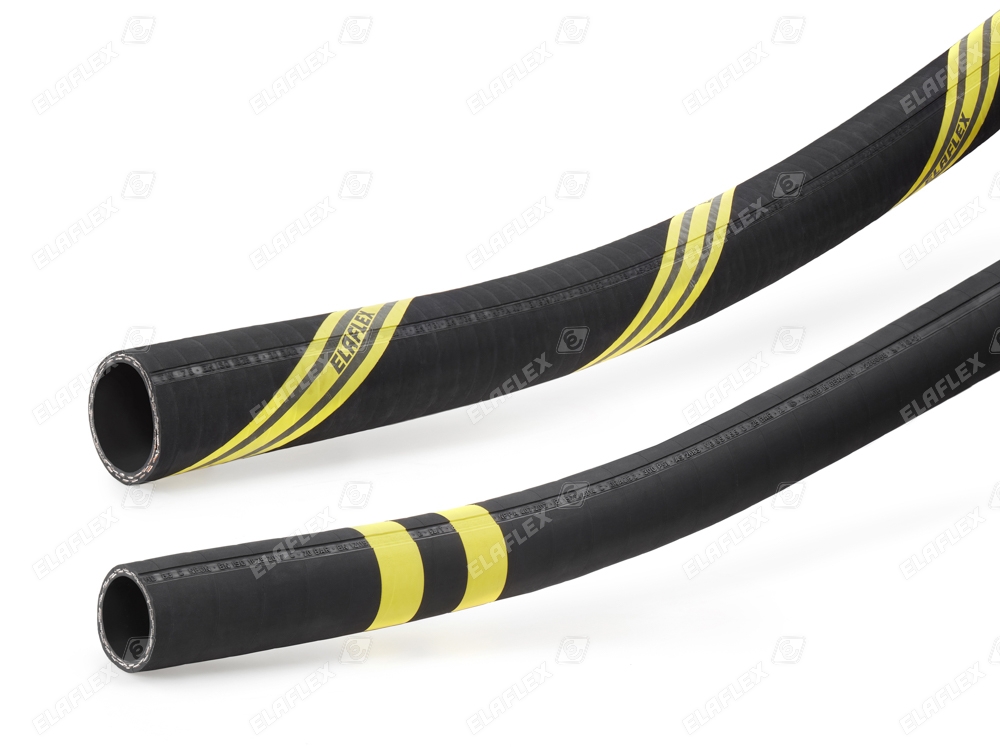

Cargo loading of a tanker with petroleum based products; FHD hose assembly with new longitudinal stripe to avoid torsion
Picture courtesy of Macoil International, Gibraltar
Elaflon PTFE
Universal hose with electrically conductive, seamless lining of PTFE (Polytetrafluorethylene). Suitable for all commonly used chemicals. Suitable for both suction and delivery (Type PTFE D = delivery). Working pressure up to 16 bar, burst pressure > 64 bar. Temperature range from - 30° up to + 150° Celsius (depending on medium). Steaming out for cleaning and sterilisation permissible up to 150° C, max. 30 min. Meets EN 12115. FDA und USP Class VI conform according EC regulations 1935/2004 and 10/2011.
RS 21/2 x3 SS
Reducer Female/Male
AVKI 38 SSE
Camlock male adapter. Material: stainless steel with universally resistant PFA coating (red)
Spannfix safety clamps SX 75 SS of stainless steel
FGN 2 SS
Flange with male thread, stainless steel
AMKC 50 SS
'Camlock' stainless steel steel coupler to EN 14420 - 7 with hose tail and Spannloc clamps
LNG Refuelling
Venting the tank with Vent Coupling 'VC-LNG'
Elapharm clamp fittings
Slimline quality dispensing hoses for the forecourt
black - yellow - red - blue - green - special colours
Elaflex seals
AMX ammonia hose
rail tanker Loading/Unloading
Drum unloading; UTS 32 hose assembly
ZVA 25
HIFLO-Automatic nozzle DN 25 (1"), flowrate up to 140 litres/min.
Rubber Expansion Joint ERV-GR 80.16
GREEN BAND expansion joints for chemicals, acids, alkalis and aggressive chemical waste water. For oil-contaminated compressed air up to + 90° C. Temperature range (depending on medium) - 20° C up to + 100° C, temporarily up to + 110° C. Electrically non-conductive.
ContiTech Production hose
Dispensing hose, removal of TPX coating after vulcanisation
Unloading petroleum products at the service station (road tanker to UST)
MK 80-32° coupling with bent lever. For any application it should be checked that the lever can be arrested as shown even if there is tight space. Elaflex offers bent levers for all MK couplers.
Fuel grade identification for ZVA to standard
Attach with EK 145 Product Badge
ZVF 50 UL 91 / green
Manual aviation fuelling nozzle for overwing service. Flowrate up to 400 ltr. / min. (85 IGM – higher flowrates are possible). Size DN 50. Working pressure PN 10 (140 psi). Temperature range - 40° C up to + 55° C.
SPANNFIX pinned safety clamps of aluminium
SX 50 NR Al
Mobile tank for solvents
hose assembly UTS 50 with MKX 50 SS and VB 50 SS
ELAFLEX Hamburg
Hose assemblies, endoscope inspection hose
