Media Library / Images

ContiTech Production hose

secondary braid

Rubber Expansion Joint ERV-G LT 80.16

YELLOW BAND LT expansion joints designed for low temperature applications for standard-conform petroleum based products, e.g. diesel, heating oil up to + 90° C, aviation fuels, petroleum up to + 60° C and gasoline up to + 40° C. Temperature (depending on medium) range - 40° C up to + 90° C, temporarily up to + 100° C. Electrically dissipative.

BD 63, HD 63 C

Aircraft refuelling hoses with ELAFLEX Hose Beads 'BD'. Details see Information 7.17

Slimline 21 green

Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360 and EN 13483.

ZVF 25 with EKG and GKG

Manual nozzle DN 25 for aircraft overwing refuelling, with ground cable assembly, dust cap assembly and AVGAS sticker (decal)

Hose Beads

BD 50, BD 63

ZVA Slimline 2, guard no. 4, Sight Glass SG 1 Al, Slimline hose assembly

Hose assemblies for petroleum based procucts

LTW 75, VX 80-3, MannTek DDC-M80-3Ms & TW 63, SFX 63 TW

Anti-Kinking Spirals 'KSS' and 'KSS-SD'

The main bending stress area for hose assemblies is directly behind the coupling. To reinforce this area we developed the Anti-Kinking Spiral 'KSS': suitable for all ELAFLEX hoses, recommended for dynamically strong stressed universal hoses with thermoplastic linings

SG 1" 1x0 Al

Sight Glass, to EN 13617-1, DN 25, for installation between petrol station nozzle and hose assembly, or mounting on the dispenser. For the visual control of bubble-free dispensing and fuel colour (e. g. for premium fuels). Suitable for all standardised gasoline and diesel fuels according EN 589 + EN 590, including ethanol or biodiesel content, also Avgas and Jet-A1.

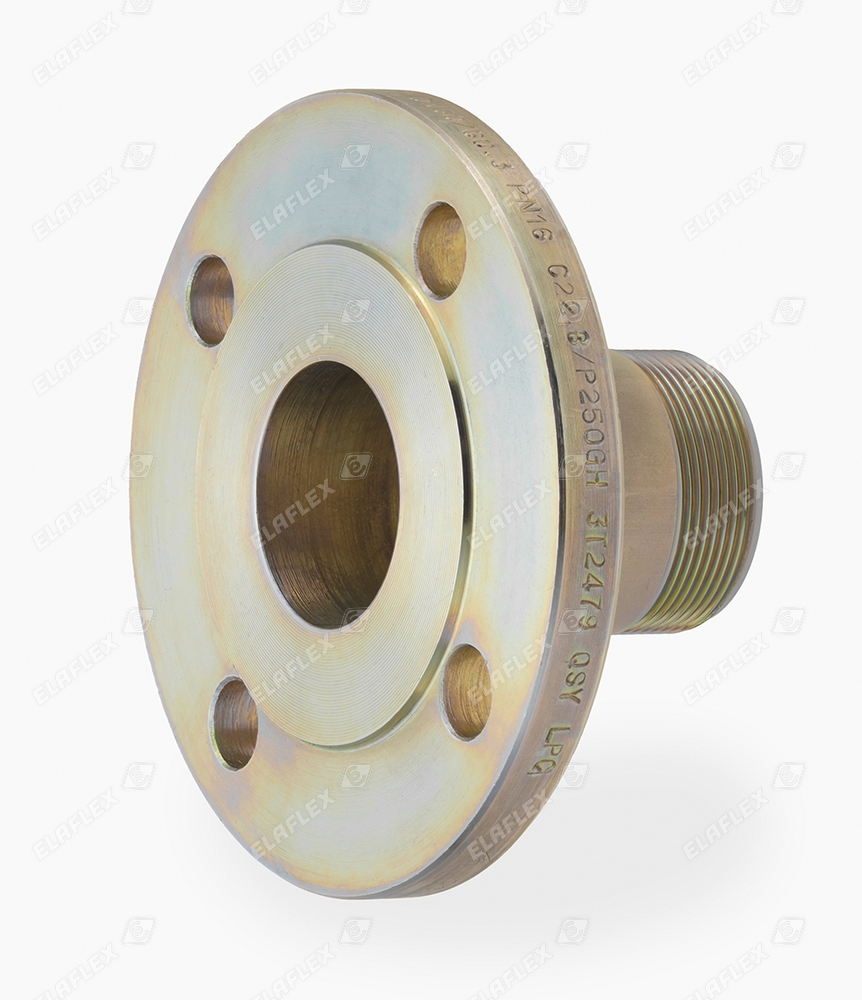

FGN 2 St

Flange with male thread, steel zinc plated/chromated

LNG bunkering

Transfer system

Railtanker

MannTek DDC-V 80 F Dry Disconnect Couplings (tank unit with flange), Pressure Caps PN 25 with pressure relief

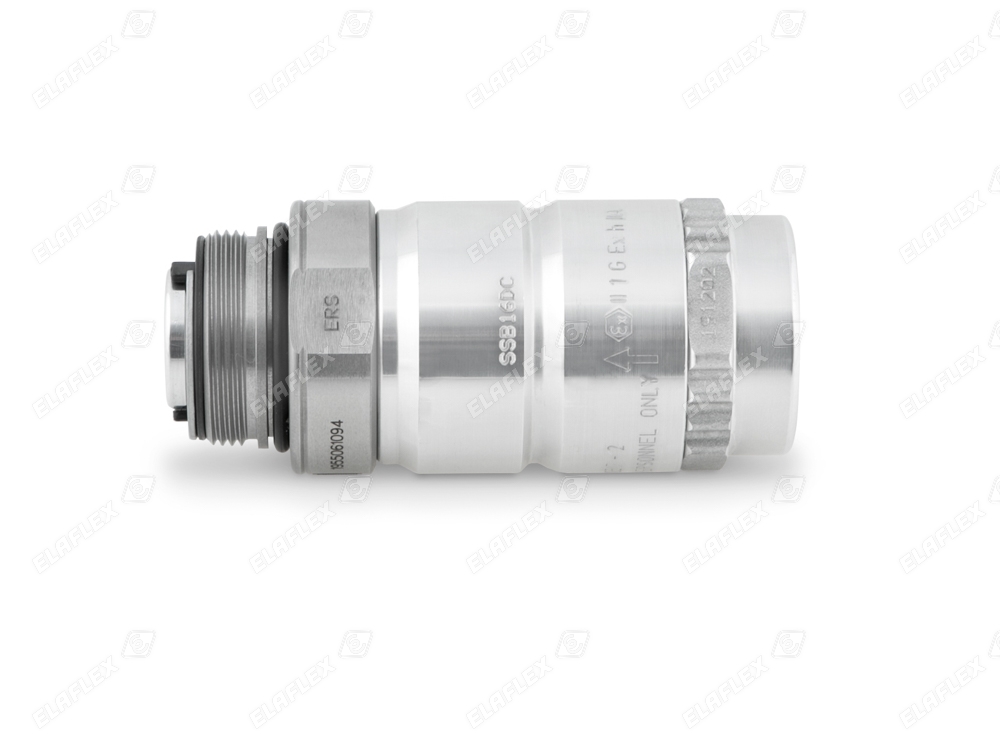

Double Closing Safety Swivel Break

SSB 16 DC

ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany

Contour check

Hoses for Liquefied Petroleum Gas / Autogas

LPG 13, LPG 16 black/orange, LPG 19

ELAFLEX Hamburg

Assembling dispensing hose fitting

GasGuard LPG nozzle GG1EH

used for industrial refueling / attended refueling. With hybrid nose piece − low lever force. Release volume on valve closure: 1,7 cm³.

TW Couplings with Isolation for electronic Cross-Over Prevention Systems

see Information 4.12

Tank container filling coupling: MK 80-32 SS with VB 80 SS

MK 80-32° coupling with bent lever. For any application it should be checked that the lever can be arrested as shown even if there is tight space. Elaflex offers bent levers for all MK couplers.

L.P. Gas rail tanker

loading and unloading with DGC Dry Gas Couplings, LPG hose assemblies. Vehicle side: DGC-V male couplings with flange

Solvapal hose assemblies

Container cleaning

ROTEX 80.16

Rubber Expansion Joint suitable for permanent use with hot heating water, cooling water and hot air. Approved according to DIN up to 100° C by 10 bar and up to 110° C by 6 bar. Temperature range (depending on medium) - 40° C up to + 130° C, temporarily up to + 150° C. Electrically dissipative

MK-A 80 SS, TW female coupler with Active Safeguard Lever

connected: hose assembly with VKX 75.80 SS

ZVA Slimline 2 GR, hand

scuffguard and product sleeve green, Slimline hose assembly with Colour Sleeve green

ZVF 25 for aircraft refuelling

dust cap and ground cable assembly

Stainless steel Hose Reel with pneumatic rewind system, HD 50

ELAFLEX Hamburg

Hose assemblies, pressure test (hydrostatic test)

SPANNLOC bolted safety clamps of aluminium

SC 75 Al

PHD 63

Aircraft refuelling hose special type with non metallic plastic helix and thick wall for enhanced lateral stability. Burst pressure > 80 bar
