Media Library / Images

HD 38 C, VX 38 - 11/2 Sn

Hose assembly for aircraft refuelling, fitting in contact with medium tin plated

DAC-V 65, DAC-M 65

Aircraft refueller , Dry Aircraft Coupling to ISO 45 for bottom loading - in action

Oasis FV103 45° Fill Valve with NC 203 P36 Nozzle, for CNG

ERV-G ... TW

"Yellow Band" Rubber Expansion Joints; tank truck

Ship loading with chemicals

UTS 150 hose assembly, ARK-S Safety Break Coupling

HB hot bitumen hose - loading road tanker

BD 63 Hose Beads

to EI 1522 standard - notably improve handling as they reduce friction against the tarmac. They additionally protect against hose abrasion. 'BD' Hose Beads are highly break resistant, contain no bolts or nuts, can be easily assembled or disassembled and are suitable for reeling.

ARK 19 Safety Break including BS 19 Break Sleeve

Safety Break (Hose Break) for installation to LPG Autogas dispensers. Reassembly on site without tools

Truck refuelling with LPG (L.P. Gas, Autogas)

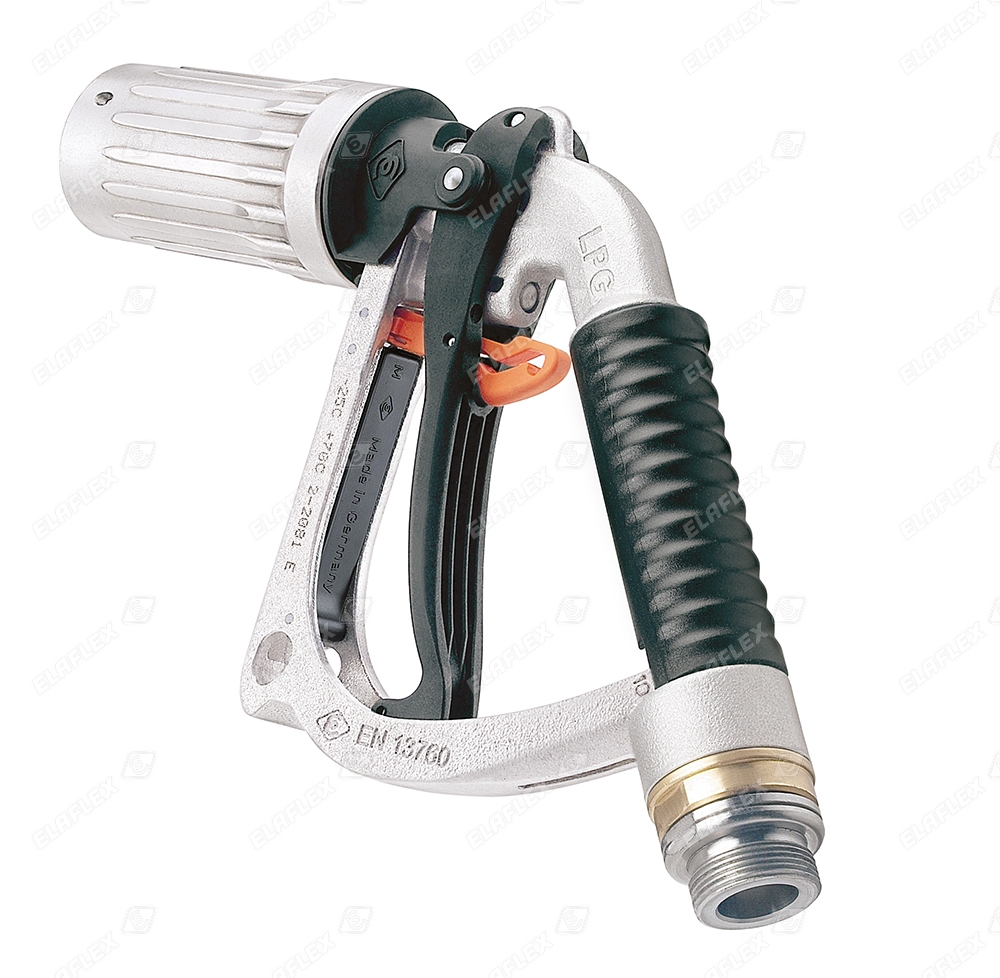

ZVG 2 ACME nozzle, LPG 16 hose

IBC unloading

Female hose coupling MC 38-S60 SS (with Spannfix clamps) and LMS solvent hose. Direct connection of a hose assembly to the IBC.

Elaflon PTFE 38, AMKC 38

Universal hose, Elaflex Camlock quality coupling

ZVA Slimline 2 GR, CSB 21, SL 21 Coax

petrol station Dubai - Vapour Recovery

ElaSil® Silicone hose assemblies DN 13-102

For for high media purity requirements, easy to clean. Suitable for Pharma, foodstuff and cosmetics industry. Homogeneous hose construction of platinum cured, translucent and phtalate free Silicone (FDA / USP), resistant to kinking and highly flexible. Large temperature range -60° C to +200° C. Available as complete hose assembly with crimped fittings, DN 13 to 102. Here: DN 25 with Camlock Cam Locking Coupling and Triclamp connection

ERV-G ... TW

Aircraft refueller

SG 1" 1x0 Al

Sight Glass with propeller, to EN 13617-1, DN 25, for installation between petrol station nozzle and hose assembly, or mounting on the dispenser. For the visual control of bubble-free dispensing and fuel colour (e. g. for premium fuels). Suitable for all standardised gasoline and diesel fuels according EN 589 + EN 590, including ethanol or biodiesel content, also Avgas and Jet-A1.

ZVA Slimline 2, black, guard 3 - detail view with new hold-open latch

MK 80-3" AG Ms

TW coupler of brass, to EN 144260-6. Special type with 3" male BSP connection

Stainless steel couplings with PFA coating, type "...SSE"

Surface in contact with the medium additionally coated with Teflon® PFA. This type is used if stainless steel does not have a sufficient chemical resistance (i.e. for hydrochloric acid and iron-III-chloride) and polypropylene is not possible because of insufficient stability. Available in all standard sizes.

Section view ERV-R Rubber Expansion Joint

ZVF 25 for aircraft refuelling

dust cap and ground cable assembly

Hose Trolley HTR-T

for terminal operations

MK 80-2" IG

TW female coupler, brass, with reduced female thread (special type)

ELAFLEX Hamburg

Commissioning / Pick by Voice

Coloured hose assemblies for the forecourt

Slimline 21, M 21-1" NR

Cargo loading of a tanker with petroleum based products; FHD hose assembly with new longitudinal stripe to avoid torsion

Picture courtesy of Macoil International, Gibraltar

Type PCS, Polypal Clean

PCS 25, PCS 63, PCS 100

Road tanker with open hose reel, HD hose assembly, ZV 500 nozzle

Hose with SC 50 SS Spannloc stainless steel clamps - corrosion protection against road salt

ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany

Sand casting: melting

ZVA Slimline 2, dispenser

ZVF 50 JET

with HD-C NEON hose assembly
