ERV-GR 250.10 SS TA
Green Band Rubber Expansion Joint with PTFE lining
Section view ERV-R Rubber Expansion Joint
ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany

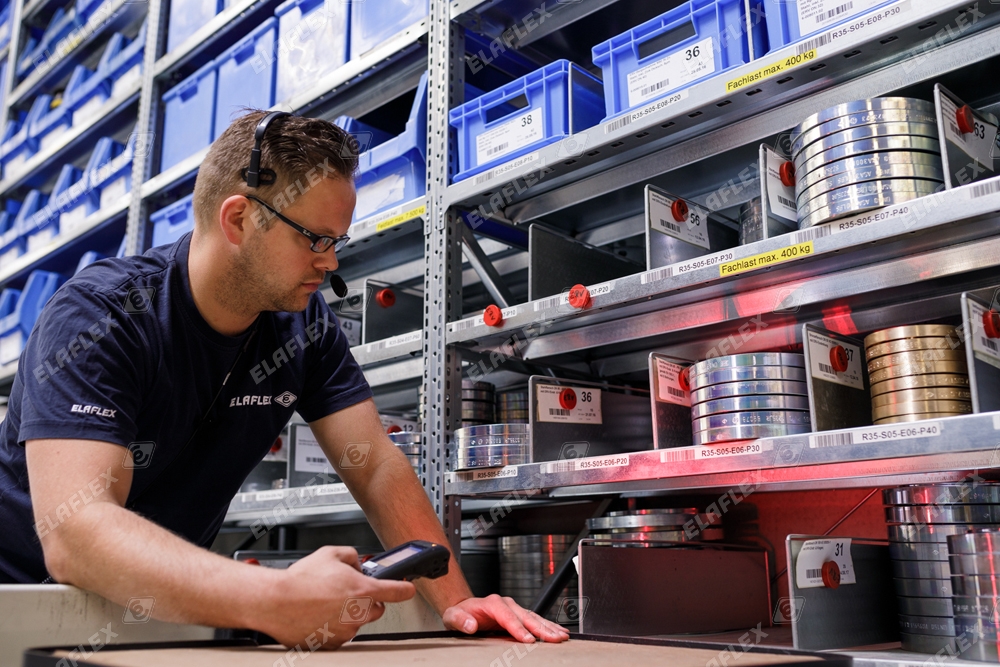

Assembling hall, meterial logistics
ERV-G ... TW
Aircraft refueller
ZVA Slimline 2 LT & ZVA Slimline 2 GR LT nozzles
Use of special seals for cold regions
Ship cargo loading with FWS-PP composite hoses
ZVA-GBZ
Automatic nozzle ZVA DN 19, of cast bronze (GBZ), for drinking alcohol, brandy etc. Flowrate up to 60 l / min.
PHD 100, airport depot
BD 63 Hose Beads
to EI 1522 standard - notably improve handling as they reduce friction against the tarmac. They additionally protect against hose abrasion. 'BD' Hose Beads are highly break resistant, contain no bolts or nuts, can be easily assembled or disassembled and are suitable for reeling.
AdBlue urea solution, road tanker:
DDC-M 50 Dry Disconnect Coupling, UTL 50 hose assembly on reel
DDC-M 80-3" SS
MannTek Dry Disconnect Coupling, DN 80, stainless steel
LG 2" hose assembly for gravity discharge, respectively for vapour balance
DDC-K 3" SS ADR
Pressure Cap, e.g. für LPG - Special type PN 25, ADR / RID compatible. With pressure indicator and pressure relief valve.
LeverAssist hold-open aid for ZVA Slimline 2 nozzles
DCC Dry Cryogenic Coupling for LNG
Coupling process
MKC 75 SS
TW female one-part coupler, stainless steel
MKX 80 Ms, coupling hose assembly
RMC 25 SS
Hose coupling with male foodstuff thread and Spannloc clamps
ElaSil® Silicone hose assemblies DN 13-102
For for high media purity requirements, easy to clean. Suitable for Pharma, foodstuff and cosmetics industry. Homogeneous hose construction of platinum cured, translucent and phtalate free Silicone (FDA / USP), resistant to kinking and highly flexible. Large temperature range -60° C to +200° C. Available as complete hose assembly with crimped fittings, DN 13 to 102. Here: DN 25 with Camlock Cam Locking Coupling and Triclamp connection
ZH 50 nozzle with MK50SS + HD hose assembly, DDC-V 80 Ms with cap, MK 80 Ms with VB 80 P
ZVF 50 JET
Manual aviation fuelling nozzle for overwing service. Flowrate up to 400 ltr. / min. (85 IGM – higher flowrates are possible). Size DN 50. Working pressure PN 10 (140 psi). Temperature range - 40° C up to + 55° C.
Maintenance at the petrol station
Swivels DG of stainless steel
Swivels serve to avoid hose torsion (increase of life span) and help for easier handling
SX 50 SS
Spannfix clamp DN 50 of stainless steel
Oasis CV Heavy Duty Check Valves for CNG
Large reel, HD hose assembly, ZH 50 nozzle
LNG ship bunkering
DCC 100 Dry Cryogenic Coupling, CBC 100 PERC Cryogenic Breakaway Coupling
Terminal / gantry: TW hose assemblies for bottom loading of road tankers
VKC 75 SS
TW male hose coupling, stainless steel, one part, with Spannfix clamps, with protecting "K"-Ring
ERV-G 400.10
DN 400
