Media Library / Images

RS 4 x 51/2 SS

Reducer Female/Male

Hose Beads

BD 50, BD 63

Oasis FV103 45° Fill Valve with NC 203 P30 Nozzle, for CNG

Vehicle refuelling with LPG (L.P. Gas, Autogas)

ZVG 2 EURO UL with EA 866 scuffguard, LPG 16 hose

ContiTech Production ERV

Vulcanisation

V 16-3/4" NPT

Male ferrule hose coupling EN 14424, reusable. Slimline 19 hose, black.

ZVA Slimline 2, dispenser

Estonia

VB 80 Al

TW dust plug, aluminium

M 16-1" NR cr

Female ferrule hose coupling EN 14424, factory assembled, non-reattacheable. Slimline 16 hose, yellow.

HD 100 C, HD 10 sensing hose

Aircraft Dispenser with DN 100 hose (spiralised marking) and a sensor hose to control the hydrant system.

Lube oil loading of a ship

TW 75 hose assembly, TW couplings

ERV-GR 80.16

GREEN BAND Rubber Expansion Joint for chemicals, acids, alkalis and aggressive chemical waste water. For oil-contaminated compressed air up to + 90° C. Temperature range (depending on medium) - 20° C up to + 100° C, temporarily up to + 110° C. Electrically non-conductive.

AdBlue® urea solution, road tanker:

DDC-M 50 Dry Disconnect Coupling, UTL 50 hose assembly on reel

IBC metal container; UTS hose assembly

Upstream Oil Industry, TW hose assemblies

Kuwait

MannTek Dry Disconnect Couplings:

DDC-M 80-3" SS with PolypalClean hose assembly, DDC-V 80-3" SS with pipe end

GasGuard LPG nozzles: optional Magnet in the guard

For contactless activation of dispensers with reed switch technology

ZVG 2 DISH nozzle for L.P. Gas / Autogas, LPG 16 hose assembly

DN 2" Ms

Double nipple brass

ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany

Plettenberg factory 2

Rubber Expansion Joint ERV-GS 80.16

YELLOW STEEL expansion joints for petroleum based products, DIN EN fuels up to 50 % aromatic content, cooling water with oily anticorrosion additives, lubrication and hydraulic oil, seawater. Temperature (depending on medium) range - 20° C up to + 90° C, temporarily up to + 100° C. Fire resistant (to ISO 15540) up to 30 min. and 800° C. Electrically dissipative.

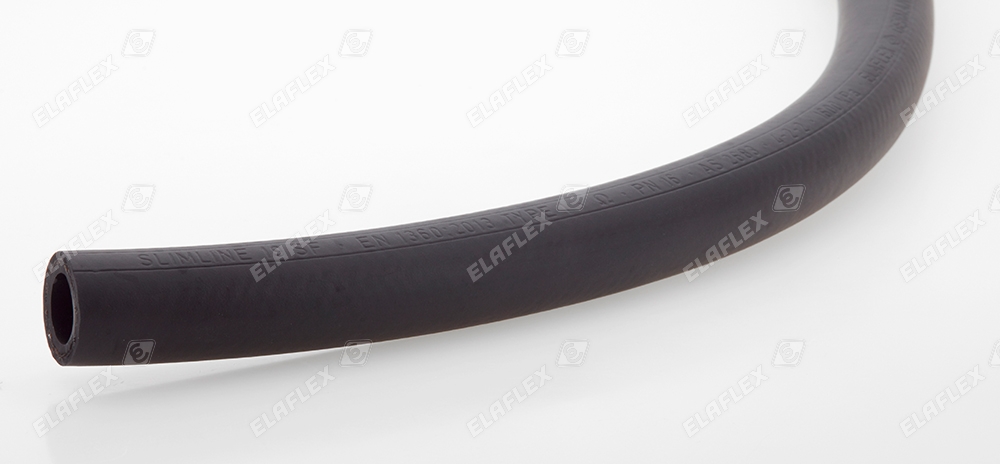

Slimline dispensing hose SF (sulfur-free)

Fuel producers spend considerable effort in fulfilling the maximum allowed sulfur content. Rubber compounds of this hose type are free of sulphur – ensures that the sulphur content of the fuel is not increased, even if the medium remains for a long time within the hose

Road tanker connection hose to trailer with bend KR 50, HD 50 hose assembly MX 50-2" Ms

DCC Dry Cryogenic Coupling for LNG

Coupling process

LPG Autogas Adapter (filler inlet) DISH

"Italian" claw coupling

ERV-R 1000.10

"Red Band" Rubber Expansion Joints DN 1000; wastewater pump

ZVA Slimline 2, black, guard 3 - side/front view

Tank container filling coupling: MK 80-32 SS with VB 80 SS

MK 80-32° coupling with bent lever. For any application it should be checked that the lever can be arrested as shown even if there is tight space. Elaflex offers bent levers for all MK couplers.

DDC-K 3" SS ADR

Pressure Cap, e.g. für LPG - Special type PN 25, ADR / RID compatible. With pressure indicator and pressure relief valve.

Rubber Expansion Joint ROTEX 80.16

ROTEX expansion joints suitable for permanent use with hot heating water, cooling water and hot air. Approved according to DIN up to 100° C by 10 bar and up to 110° C by 6 bar. Temperature range (depending on medium) - 40° C up to + 130° C, temporarily up to + 150° C. Electrically dissipative.
