Media Library / Images

Stainless steel Hose Reel spring rewind black, FEP 38, DDC-M 50 SS

Camlock cam locking couplings:

Attachment AVB dust plug with chain to Spannloc clamps (service free of charge)

Urea solution for trucks: ELAFIX 40 magnet adapter in filler inlet of AdBlue® tank

Safety against misfuelling (mixup with Diesel)

Heating oil delivery: HD 38 reel hose

DDC-V 25 Al; DDC-K 25

Dry Disconnect Coupling as probe/sampling unit connection at aircraft refueller

ERV ZSS:

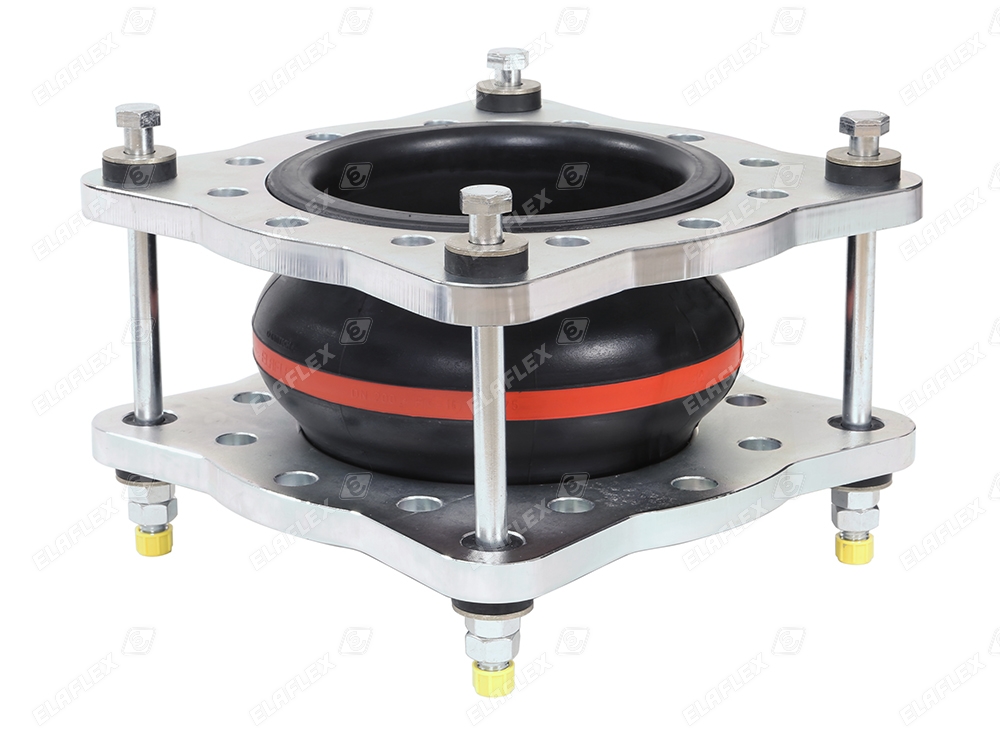

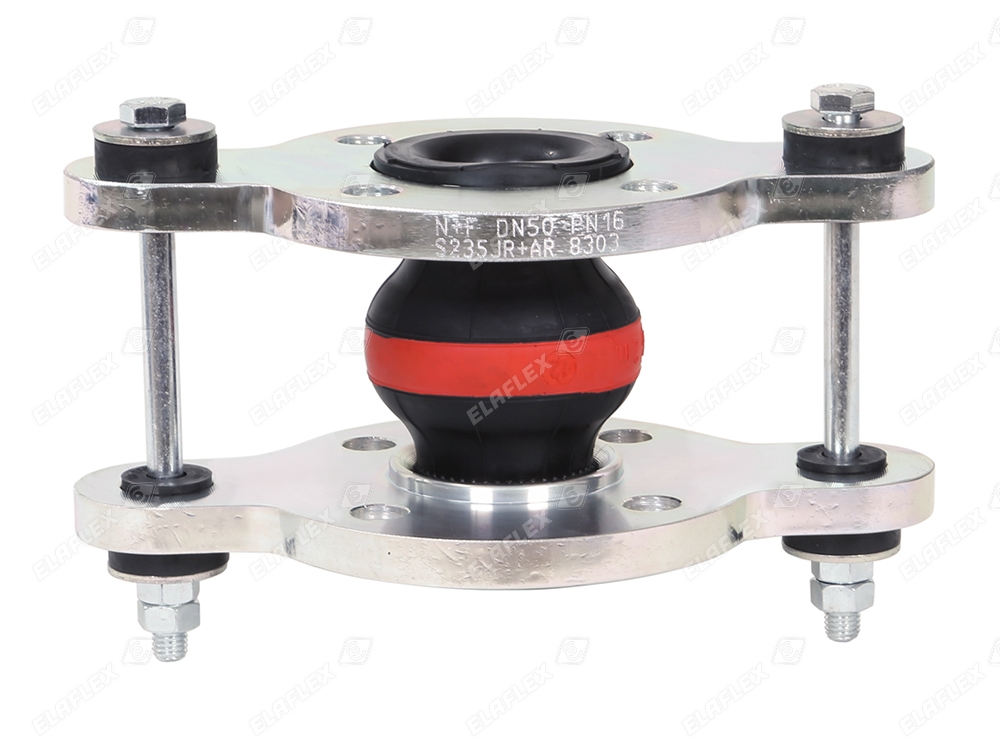

Tied Flanges – Tie rods with inner and outer limitation

Unloading chemical road tanker

Solvapal hose assembly with DDC Dry Disconnect Couplings

ERV-ROTEX expansion joint, hot water pumping system

ERV-R 1000.10

"Red Band" Rubber Expansion Joints DN 1000; wastewater pump

Hose Reels electrical rewind system yellow

for water

Assembling Spannloc hose fittings

DDC-M 80 SS; SG 3", VC 75-3, Elaflon FEP 75

Epoxy resin loading with Dry Disconnect Coupling, sight glass and FEP universal hose

NB-ZVF 50

Noozle Boots for ZVF 50 Overwing Nozzles

HD 32 C

Yellow Band' aircraft refuelling hose, suitable for all aviation gasolines and jet fuels (JET A 1), deicing fluids and motor oils. Temperature range - 30° up to + 90° Celsius. Electrical resistance between 1,000 and 1 million Ohm.

M 16-1" NR cr

Female ferrule hose coupling EN 14424, factory assembled, non-reattacheable. Slimline 16 hose, yellow.

Fluorline EFL 16

Universal pump hose DN 16 for chemicals, petroleum based products, for propane, butane and other L.P. gases, as well as solvents. Ideal for highly sensitive media such as AdBlue^® urea solution. Temperature range -40 °C to +100 °C. Burst pressure > 64 bar.

HD 38 C NEON, Aljac bonding reel

Airfield refueller (e-refuelling technology)

MannTek DDC-V 150 F Al, DDC-M 150-6"

Adapters / couplers for vehicles fighting dangerous goods incidents:

Adapters Storz / Guillemin Storz C SS/Vi x VK 50 SS/Vi, Storz C SS/Vi x MK 50 SS/Vi, GK 50 SS/Vi x VK 50 SS/Vi, GK 80 SS/Vi x VK 50 SS/Vi

ELAFLEX Hamburg

Hose stock, reeling up a FEP hose

Section view of a DS 2 swivel

Oasis FV103 180° Fill Valve with Bus & Truck Nozzle, for CNG

PHD-F aircraft refuelling hose

PHD 63 F

Road tanker Sweden

large reel with HD hose assembly, DDC-V (Dry Disconnect Coupling, tank unit) and DDC-K (caps)

MK-A 80 SS, TW female coupler with Active Safeguard Lever, VB 80 SS

Pull slider to unlock

CNG Safety Break with Extention 'EL' (Extended Length) SB-CNG FLVL-EL-J

 SB-CNG FLVL-EL-J

ERV SR:

ERV with inner protection sleeve of stainless steel AISI 316 Ti to prevent abrasion of the rubber liner, i. e. for media containing abrasive components or to avoid cavitation. Please note : The nominal bore is reduced.

Cargo loading of a tanker with petroleum based products; FHD hose assembly with new longitudinal stripe to avoid torsion

Picture courtesy of Macoil International, Gibraltar

ELAPHARM Type EPH-OHM G

electrically conductive 'OHM/T', with light grey cover, to EN 16820, Type A. FDA conform, homogeneous elastomer hose construction with smooth, black PTFE liner.
