Refuelling equipment for petroleum based products:
Elaflex "Yellow Band" Hose assemblies, ERV Rubber Expansion Joints
Rail tanker unloading of petroleum based products
LTW hose assemblies, TW couplings
ERV with FSH:
Flame protection cover (closed)
ELAFLEX Hamburg
Stock special flanges, pick by voice
KR 50 - 21/2"
Filling of Heating Oil Tanks: New Adapter for difficult-to-reach house connectors
UTS 50 hose assembly
with MannTek DDC Dry Disconnect Coupling; use eg. as road tanker hose for filling AdBlue® petrol station tanks
Stainless steel Hose Reel with pneumatic rewind system, HD 50
System comparison Camlock Cam Locking Couplings
Industry standard vs. ELAFLEX EASYLOC
Hose assembly TW 63 with VX 63-11/2" and DDC-M 65 Al
TW hose with Dry Disconnect Coupling
Ship loading with chemicals
UTS 150 hose assembly, ARK-S Safety Break Coupling
ELAFLEX Hamburg
Assembling COAX hose SL 21, with inner vapour hose, for vapour recovery Stage II

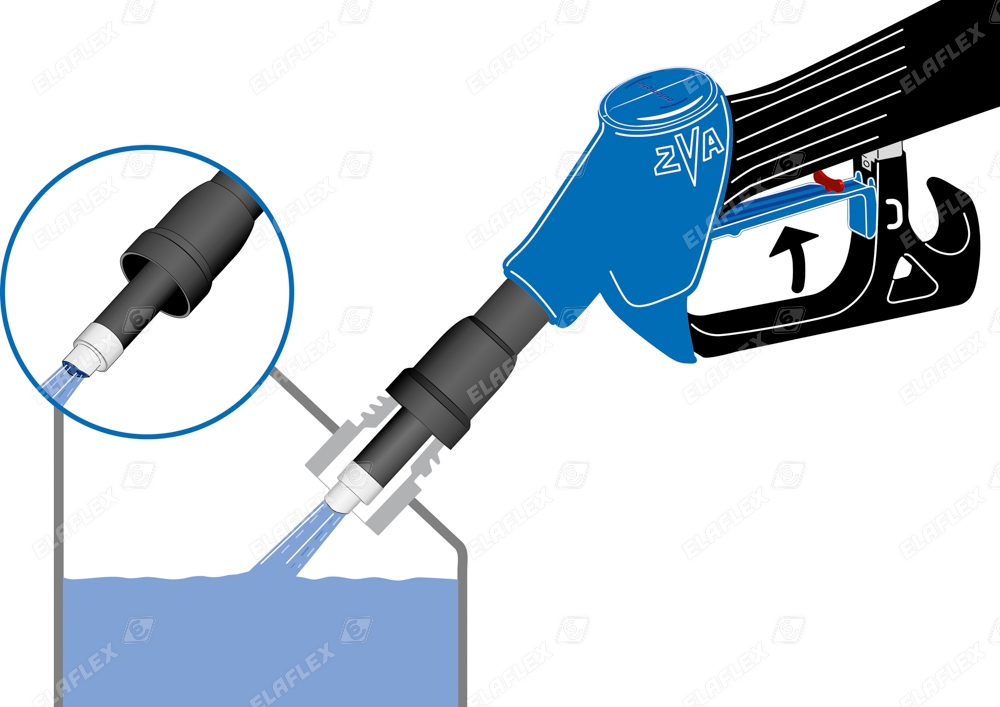

ZVA 25
Special type for solvents / chemicals
RS 2 x 3 SS
Reducer Female/Male
Movable Storage Hose Reel with manual rewind system white, HD 38, ZV 400
customised
Cargo loading of a tanker with petroleum based products; FHD hose assembly with new longitudinal stripe to avoid torsion
Picture courtesy of Macoil International, Gibraltar
ERV-G
Pump station for fuels
Hose Assemblies with Flange - Elapac seals
Flange seal: Elapac.
ERV-G 80.TW
Yellow Band rubber expansion joint with TW flanges
ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany
ZVA long term testing
ELAFLEX seals
MannTek FFBV
Full Flow Ball Valves 2-way
ElaSil® Silicone hose assemblies DN 13-102
For for high media purity requirements, easy to clean. Suitable for Pharma, foodstuff and cosmetics industry. Homogeneous hose construction of platinum cured, translucent and phtalate free Silicone (FDA / USP), resistant to kinking and highly flexible. Large temperature range -60° C to +200° C. Available as complete hose assembly with crimped fittings, DN 13 to 102. Here: DN 25 with Camlock Cam Locking Coupling and Triclamp connection
Vehicle refuelling with LPG (L.P. Gas, Autogas, Propane)
GasGuard GG1 ACME nozzle
ELAFLEX Hamburg
Forklift loading station
LMD 25 Blue Band solvent hose
without helix
ZVF 50 JET overwing refuelling
with HD-C hose assembly
Elaflex AB, Sweden
GasGuard LPG nozzle GG30
4-slot design to facilitate connection of the nozzle to the vehicle fill point. New nose piece design to reduce the released gas upon valve closure, incorporating improved gas release method to minimise the risk of splash back.
GasGuard LPG nozzle GG20DN
With long connector nut to access 'hard to reach' fill points. "DN": suited for use by the general public and untrained personell (self service). Patented dual nose piece for added safety. Low lever actuation force. Gas release volume on valve closure : 1,7 cm³.
