ROTEX 80.16 ZS 2

Tied Flanges – Type ZS, Tie rods with outer limitation in rubber bushings

Slimline quality dispensing hoses for the forecourt

black - yellow - red - blue - green - special colours

ZVG 2 ACME nozzle for L.P. Gas / Autogas

pulling lever and latching, possible with one hand

Rail tanker unloading of petroleum based products

LTW hose assemblies, TW couplings

Aircraft refuelling: MannTek sampling unit in hydrant system

ERV-R 100.16

RED BAND Rubber Expansion Joint for water, drinking water (DVGW W 270 as well as ACS, conform to FDA), cold and warm waste water, seawater, cooling water, also with chemical additives for water treatment, low concentrated acids and alkalis, salt solutions, technical alcohols, esters and ketones. Can be used in oily athmospheric environments, e.g. engine rooms. Temperature range - 40° C up to + 100° C, temporarily up to + 120° C. Electrically dissipative.

ELAPAC FD flat sealing material

2 or 3 mm thickness, available as coil, standard size seal or in custom shape. An elastic flange seal for tank truck and tank plant construction etc., where rough sealing surfaces require a high adaptability, where flange seals should still have good flexibility to avoid pipe fractures or simple sealing materials because little or no force can be used to tighten the joint.

Fluorline EFL 21

Universal pump hose DN 21 for chemicals, petroleum based products, for propane, butane and other L.P. gases, as well as solvents. Ideal for highly sensitive media such as AdBlue^® urea solution. Temperature range - 40° to + 100° C. Burst pressure > 64 bar.

Elapharm EPH 38 OHM-G with CF hose tail DIN 32676, free of dead spaces

Tank container filling coupling: MK 80-32 SS with VB 80 SS

MK 80-32° coupling with bent lever. For any application it should be checked that the lever can be arrested as shown even if there is tight space. Elaflex offers bent levers for all MK couplers.

EK 145 Product Badges for ZVA nozzles

Malaysia

Cargo loading of a tanker with petroleum based products; FHD hose assembly with new longitudinal stripe to avoid torsion

Picture courtesy of Macoil International, Gibraltar

Drum unloading chemical industry

UTS hose assemblies with Easyloc cam locking couplings

Forklift refuelling with LPG (L.P. Gas, Autogas)

GasGuard nozzle, LPG 16 hose; dispenser

Heating oil delivery: ZV 500 nozzle, HD reel hose - up to 80 mtr length

Construction of ELAFLEX composite hoses type FWS

Sectioned view of a composite hose

ELAFLEX Hamburg

Hose stock, reeling up a FEP hose

Terminal, TW hose assemblies and DDC Dry Disconnect Couplings

ELAPHARM Type EPH

electrically isolating 'I', with blue cover, to EN 16820, Type A. FDA conform, homogeneous elastomer hose construction with smooth, white PTFE liner. Clamp fittings, lining flared (free of dead spaces).

Manifold for incoming media, chemical industry

Elaflon PTFE universal hose, AMK 50 EASY (Easyloc cam locking couplings with automatic lever lock)

Camlock hose couplings: system comparison

Easyloc from Elaflex with automatically secured levers.

Chemopal 50 mW

Chemopal chemical hose DN 50 with helix

Oasis BV706 ball valves with Code 62 flange and SAE connection, for CNG

ELAFLEX Hamburg

Main building / entrance

LMD 32 Blue Band solvent hose

without helix

ZVG 2 K (Korea)

suitable for passenger and heavy duty vehicle refuelling in markets utilising the 'J15' fill point receptacle.

HD-C LT, Low Temperature

Antarctica: Low Temperature aircraft refuelling hoses in action; fuel transfer from drums via mobile pump

Nozzle boot NB-ZVF 50

for ZVF 50 Oberflügel-Zapfventile

Construction site / on site refuelling:

ZVA 25 (automatic nozzle), road tanker

AKD 75 Hy

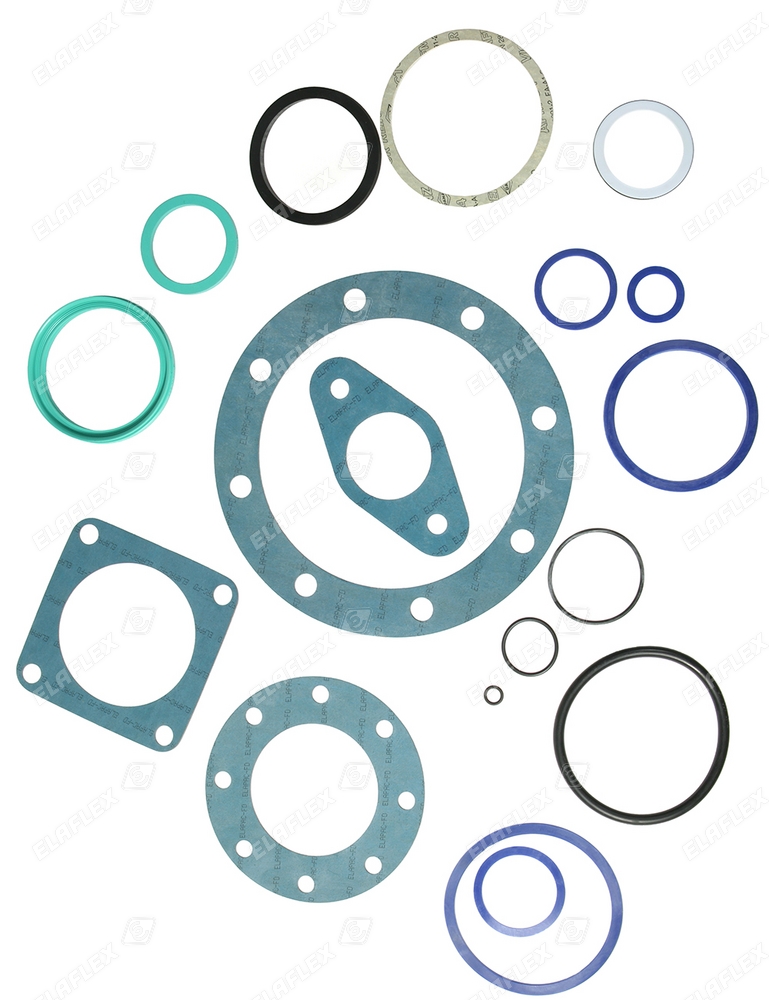

CouplingSeal CSM
