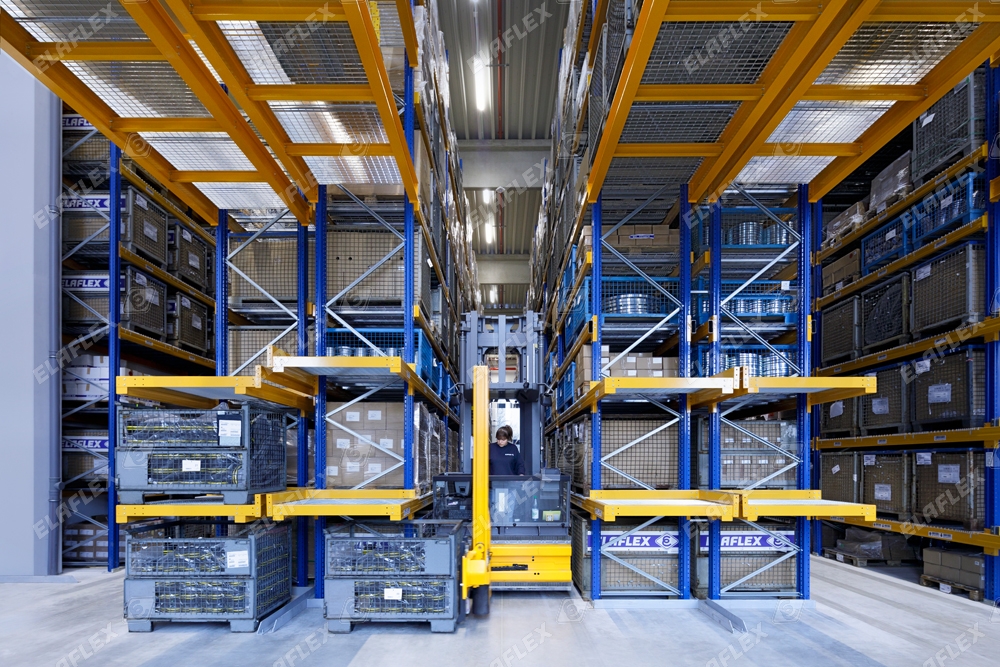

Stock special flanges, pick by voice

Slimline SF 19 black

Quality petrol pump hose for gasoline and diesel fuels. Special type 'sulphur-free'. Sulphur content of fuel does not increase, even if medium remains with the hose for a longer time, see Information 12. 15 and catalogue page 111c.

SG 1" 1x0 Al

Sight Glass, to EN 13617-1, DN 25, for installation between petrol station nozzle and hose assembly, or mounting on the dispenser. For the visual control of bubble-free dispensing and fuel colour (e. g. for premium fuels). Suitable for all standardised gasoline and diesel fuels according EN 589 + EN 590, including ethanol or biodiesel content, also Avgas and Jet-A1.

Unloading petroleum products at the service station (road tanker to UST)

MK 80-32° coupling with bent lever. For any application it should be checked that the lever can be arrested as shown even if there is tight space. Elaflex offers bent levers for all MK couplers.

Maintenance at the petrol station

DDC Dry Disconnect Couplings for chemicals

Rail tanker loading/unloading

ZVA Slimline 2 for aircraft refuelling

black plastic cover (scuffguard), Sight Glass, dust cap and ground cable assembly

Unloading petroleum products at the service station (road tanker to UST)

Connection offset UST filling point: LG 3" hose assembly for gravity discharge, LTW 50 hose assembly for vapour balance

ZVA Slimline 2 GR, black, guard 3 - side view

UTL 50 universal hose with MannTek Dry Disconnect Coupling

Elaflon Plus FEP 50

LPG Autogas Adapter (filler inlet) DISH

"Italian" claw coupling

CHD 32

Lilac Band chemical hose without helix, DN 32

Elaflex Hiby Tanktechnik, Production Plettenberg / Germany

ZVA long term testing

ROTEX 80.16

Rubber Expansion Joint suitable for permanent use with hot heating water, cooling water and hot air. Approved according to DIN up to 100° C by 10 bar and up to 110° C by 6 bar. Temperature range (depending on medium) - 40° C up to + 130° C, temporarily up to + 150° C. Electrically dissipative

SBS 250 - marine cargo hoses with built-in nipples

EN 1765, category S 15

Alternative fuels: B 20 (Diesel with up to 20% Biodiesel), E 85 (Gasoline with up to 85% Ethanol)

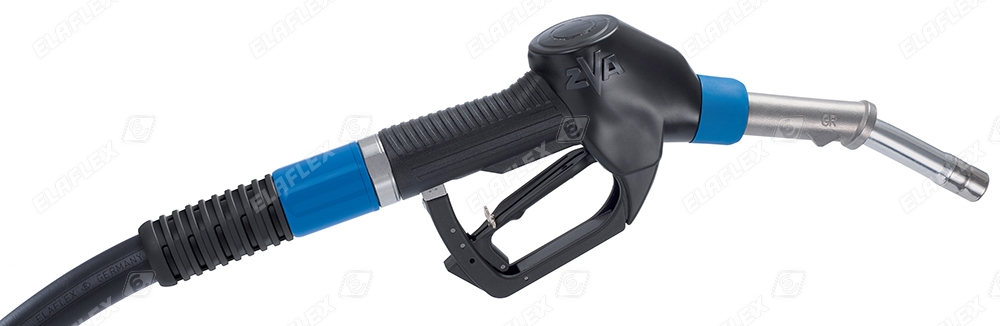

ZVA Slimline 2, ZVA Slimline 2 GR

L.P. Gas rail tanker

loading and unloading with DGC Dry Gas Couplings, LPG hose assemblies. Vehicle side: DGC-V male couplings with flange

Chemical manifold

FEP 5O, MannTek DDC-M 5O SS

DN 1" SS

Double nipple stainless steel

ContiTech Production hose

Dispensing hose, extrusion cover

Elaflex Hamburg

Visual quality checks

ZH 50.2

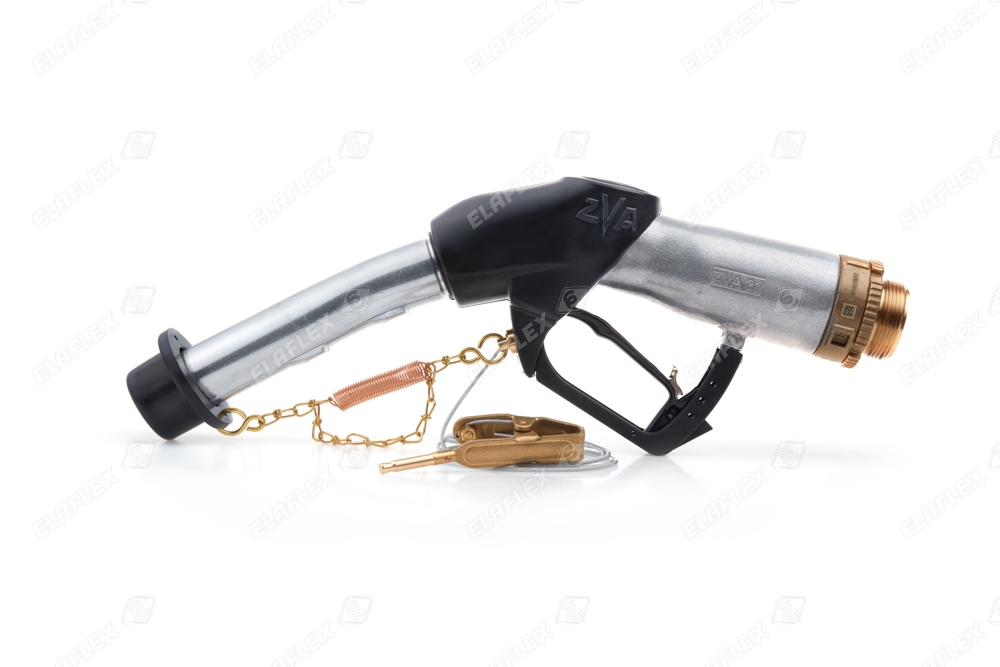

High performance manual operated dispensing nozzle, for Diesel, heating oil, viscous gear and motor oils, max. flowrate 450 litres/min.

Hose assembly TW 75 with MKX 75.80 Ms

TW hose with TW female coupler, two piece

ZVA_AdBlue_LV_2-Stufen-Anschlag_Step1

Use - 1/2

AN 2 Al

Welding nipple aluminium

SSB 32, SSB 25, SSB16

Safety Swivel Breaks (SSB)

Composite hose assemblies with 'COPSAFE' , suitable for COP systems (cross-over prevention)

TW filll adapters:

TWV 7 (VK 50 x MB 80), TWÜ 13 (VK 50 x 21/2" fem.)

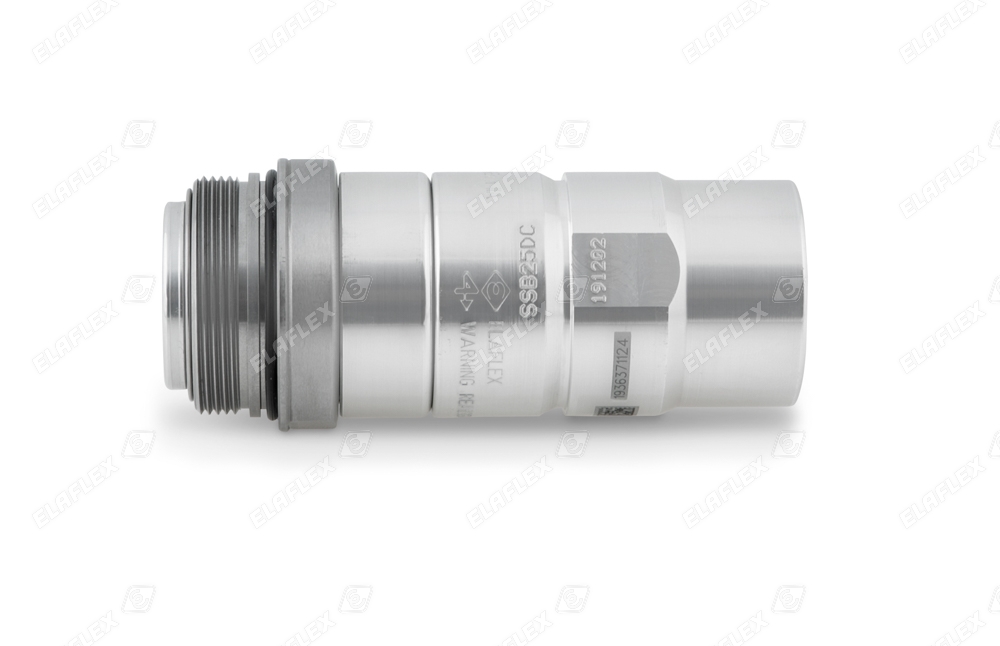

Stainless steel couplings with PFA coating, type "...SSE"

Surface in contact with the medium additionally coated with Teflon® PFA. This type is used if stainless steel does not have a sufficient chemical resistance (i.e. for hydrochloric acid and iron-III-chloride) and polypropylene is not possible because of insufficient stability. Available in all standard sizes.
